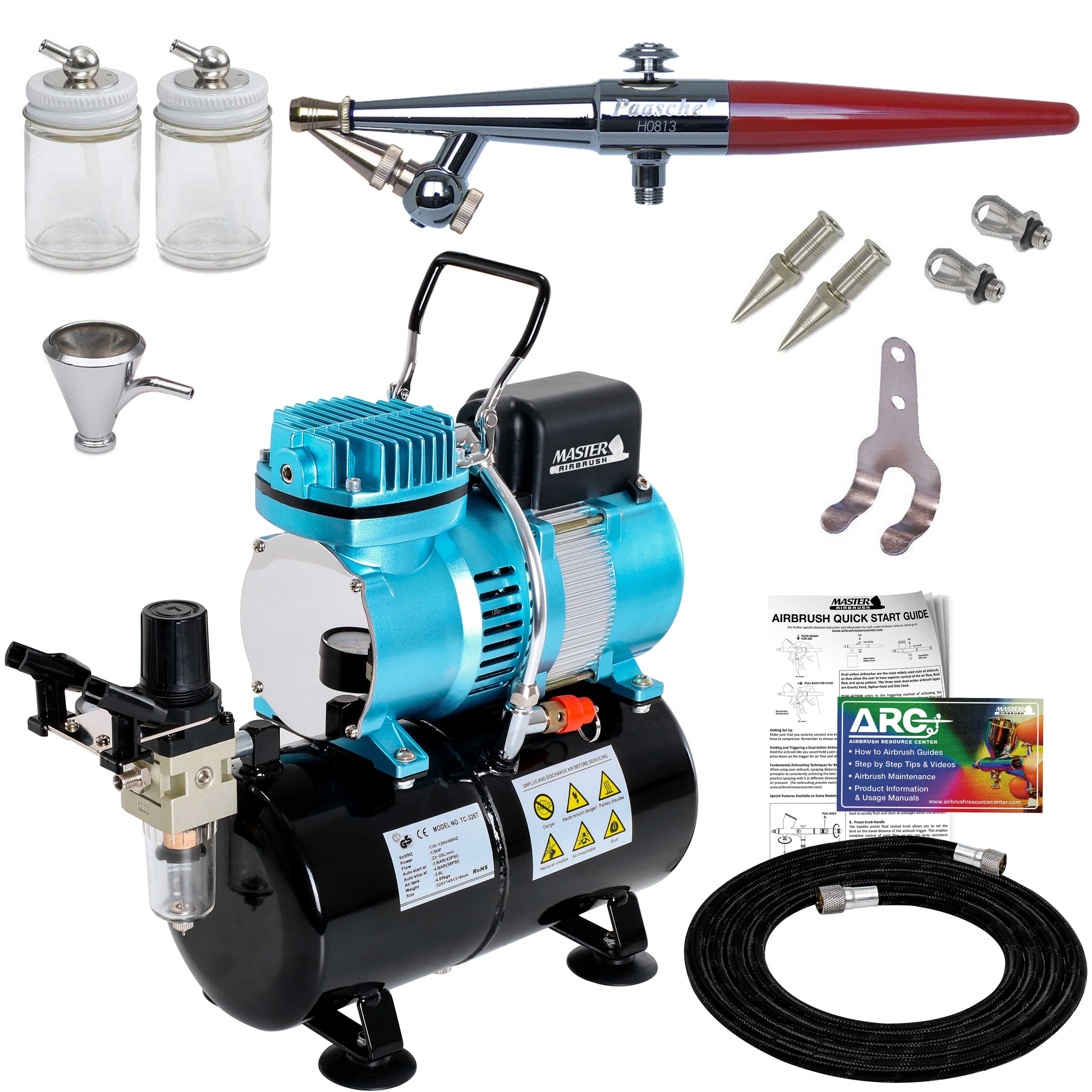

Complete Paasche H-SET Airbrush System Includes:
- Paasche H-SET Precision Dual-Action Siphon Feed H Airbrush Set with3 Tips and Braided Airbrush Hose (Includes Factory Warranty)
- Airbrush-Depot Brand Model TC-20T Maintenance Free Air Compressor with Air Tank that has a Automatic On/Off Shutoff, Air Regulator with Gauge & Water Trap Filter (Includes a Full 2 Year Warranty)
The Paasche H Airbrush Set includes:
- H #1 Single-Action Siphon Feed External Mix Airbrush
- #3 and #5 Air cap, Needle, Nozzle Sets
- 6 Foot Braided Air Hose
- Metal Color Cup
- Bottle Assembly
- Bottle w/Cover
- Hanger and Wrenches
- PAASCHE'S 22 Airbrush Lessons Booklet & Parts Sheet
The H AIRBRUSH is Excellent for multiple use: T-Shirt Airbrushing, Taxidermy, Leather Airbrushing, Models, Trains, RC Cars, Ceramics, Graphic Arts, Body Art Tattoos, Cake Decorating, Chip or Ding Repair, and More!
Here's an idea of pattern sizes and which set-ups are best for various fluids:
The H#1 Spray Pattern 1/32"- 1" for Light Fluids
H#3 Spray Pattern 3/64"- 1 1/4" for Medium Fluids
H#5 Spray Pattern 1/16"- 1 1/2" for Heavy Fluids
The recommended air pressure 0.5 to 1 CFM @ 20 to 45 lbs.
Master Airbrush Model TC-20T Tank Air Compressor Specifications
: Single Cylinder Piston Compressor w/Air Tank
: 1/5 Horse Power
: 110-120V / 60HZ
: Pressure Regulator with Gauge and
Water Trap Filter.
: 25 Liters/Minute; 0.8 CFM @ 60 PSI
: 15-45 PSI
: Factory Preset at 60 PSI,
without Preset Control 100 PSI
: Stop at 60 PSI, Start at 35 PSI
: 0.92 Gallon (3.5 Liters) Safety Pressure Relief Valve
: 1/8'' BSP
: 13" H x 6.5" W x 13.5" L
: 11.5 LBS (5.2KG)
: 6 foot, Certificate: CE
Master Airbrush TC-20T Air Compressor with Tank Features
: At 1/5 Horsepower this unit delivers more Air Volume (CFM) and Air Pressure (PSI) than any airbrush demands.
: Light-Weight and Compact with a built in carrying handle for Easy Handling and Storage.
Precise Air Adjustment
: True Diaphragm Pressure Regulator with Gauge and Water Trap Filter that provides precise adjustment of airflow and ensures clean, dry air.
Automatic On/Off Shutoff
: Preset for automatic turn off when air tank reaches 60 PSI. Preset for automatic turn on when air tank pressure is below 35 PSI. The reduced running time means there will less motor wear and less heat-related moisture
enabling a longer compressor life.
Constant Pressure and Zero Pulsation
: Air is drawn from the large air storage tank providing you a constant regulated pressure. There's zero pulsation because air is drawn from the tank which eliminates any pulsation effect from the pistons.
: Designed to work only when you do, produces air on demand at the your regulated pressure.
: Automatically turns itself off if the unit becomes over heated.
: Oil-less Piston Motor
: Very Quiet Operation, only 59 db.
Full 2 Year Warranty
, so you can be assured of Quality and Reliability.
