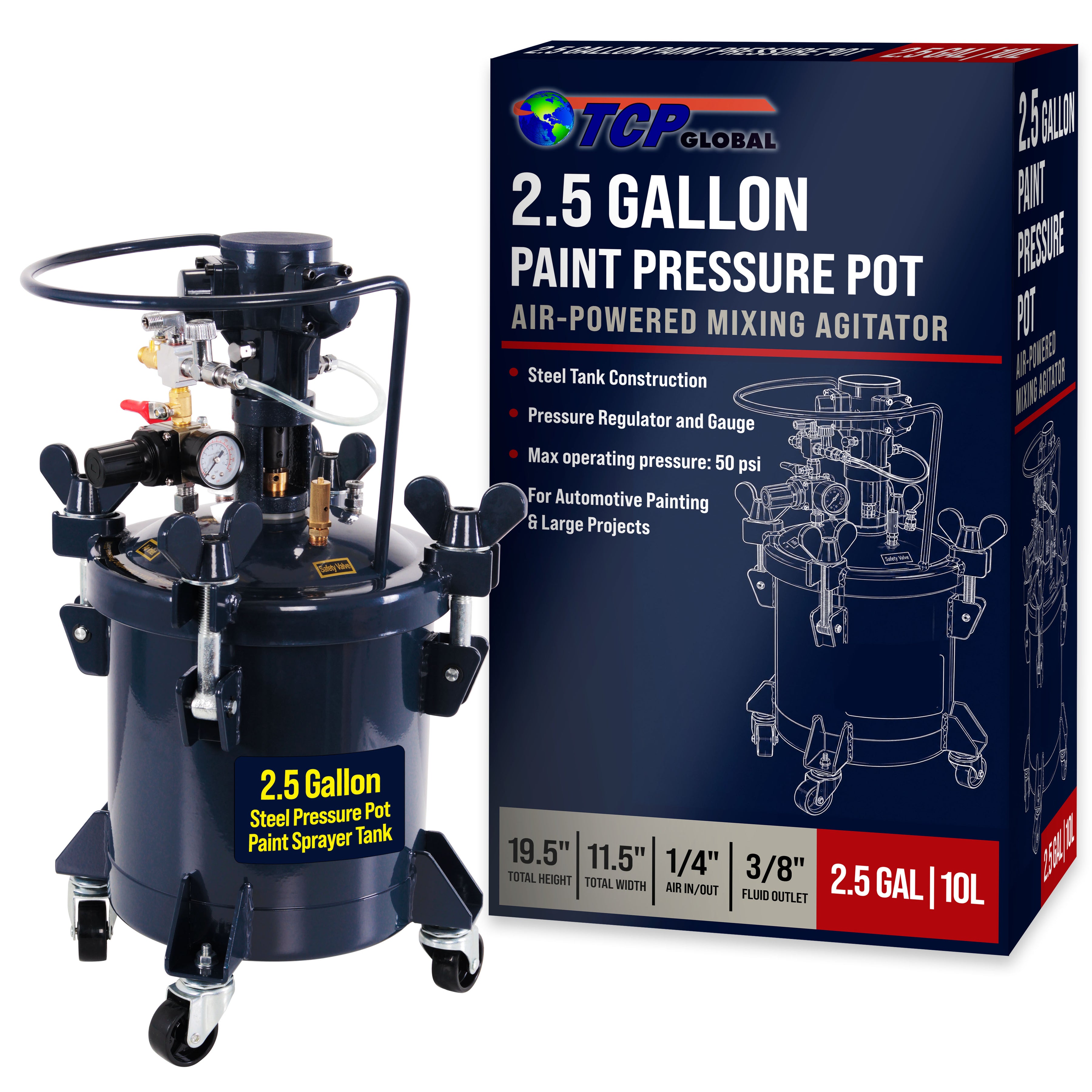

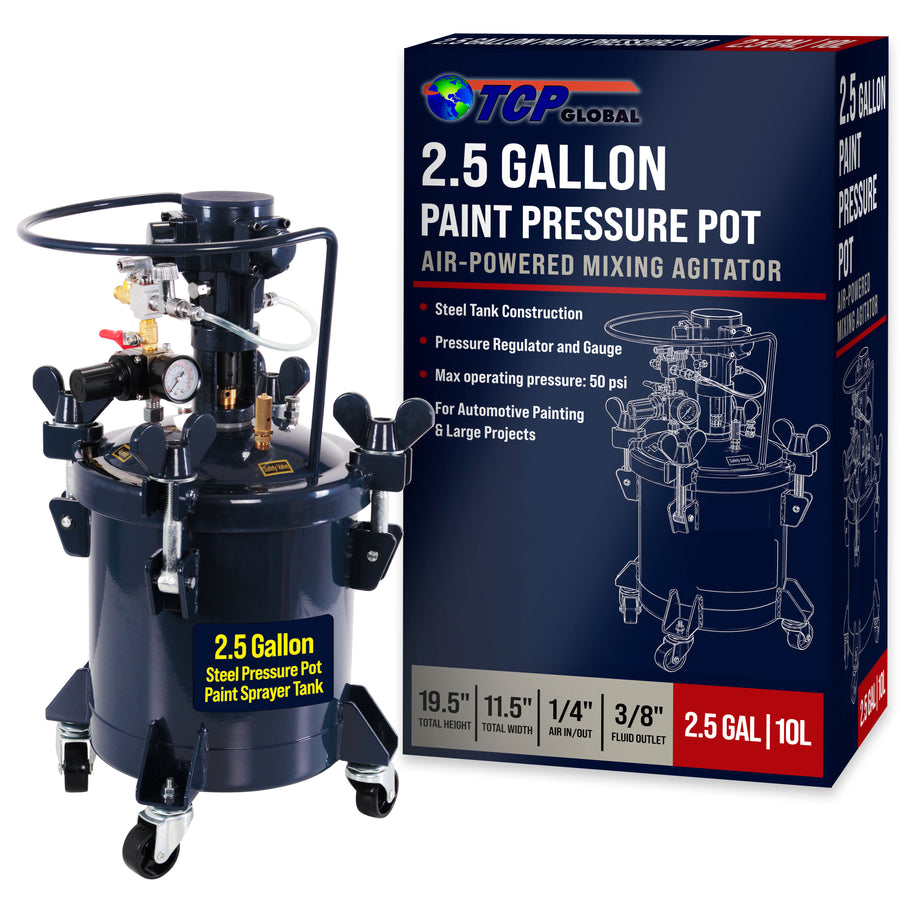

    2.5 Gallon (10 Liter) Heavy Duty Steel Pressure Pot Paint Tank with Air Powered Mixing Agitator, Clamp on Lid, Regulator & Pressure Gauge for

    SKU: TCP PT8320
    Rated 5.0 out of 5
    Based on 1 review
    Regular Price $399.99
    WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

    Heavy Duty 2.5 Gallon Pressure Pot Tank Specifications:

    • Paint pot capacity: 2.5 Gallons (10 Liters)
    • Powder coated tank finish that is easy to clean
    • Clamp on lid (4 clamps) with an air tight sealing gasket

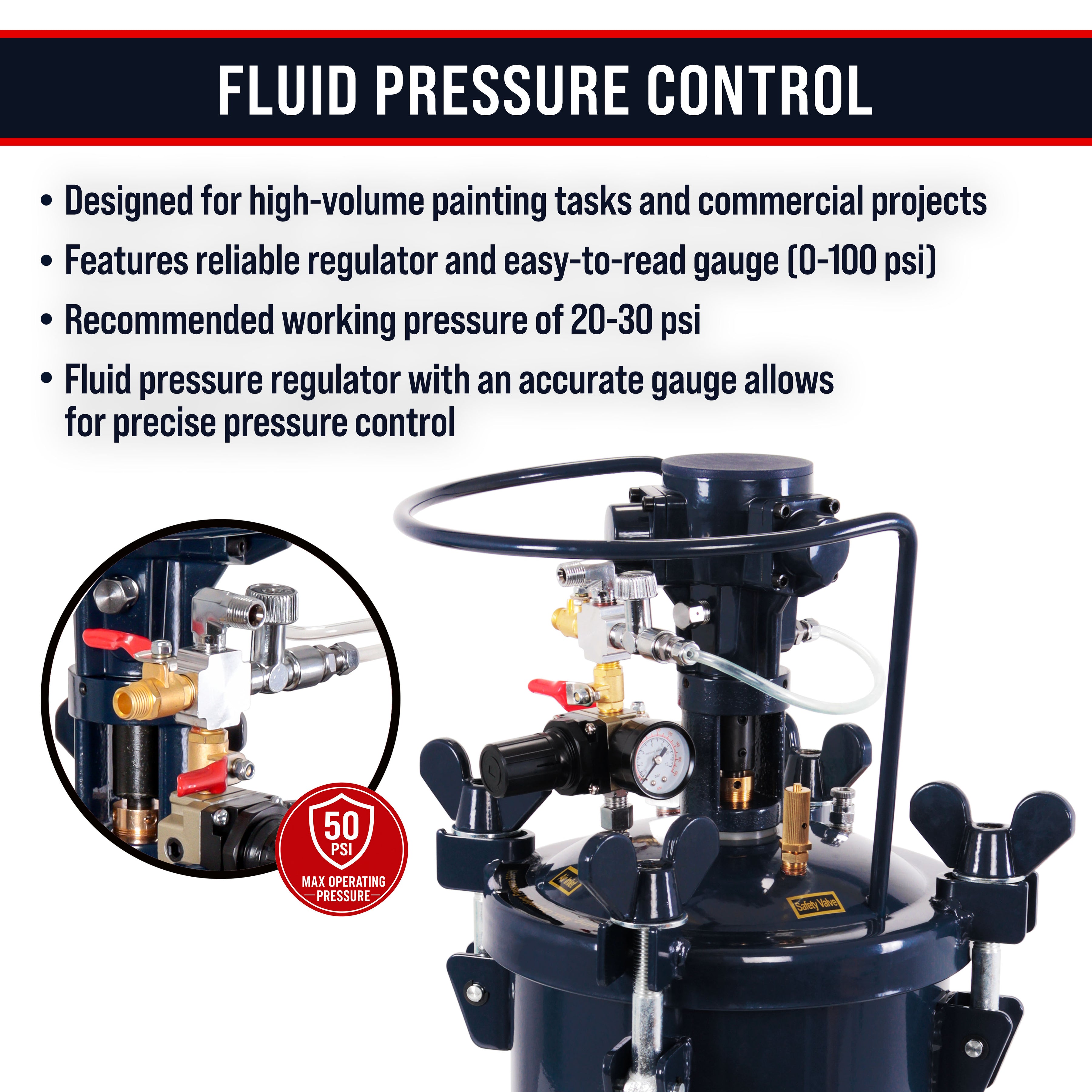

    • Double output regulation
    • Tank fluid pressure gauge from 0 to 100 psi (0 to 7 bar)
    • Working pressure: Optimal 20-30 psi (1.4 to 2.1 bar); Max operating pressure: 50 psi

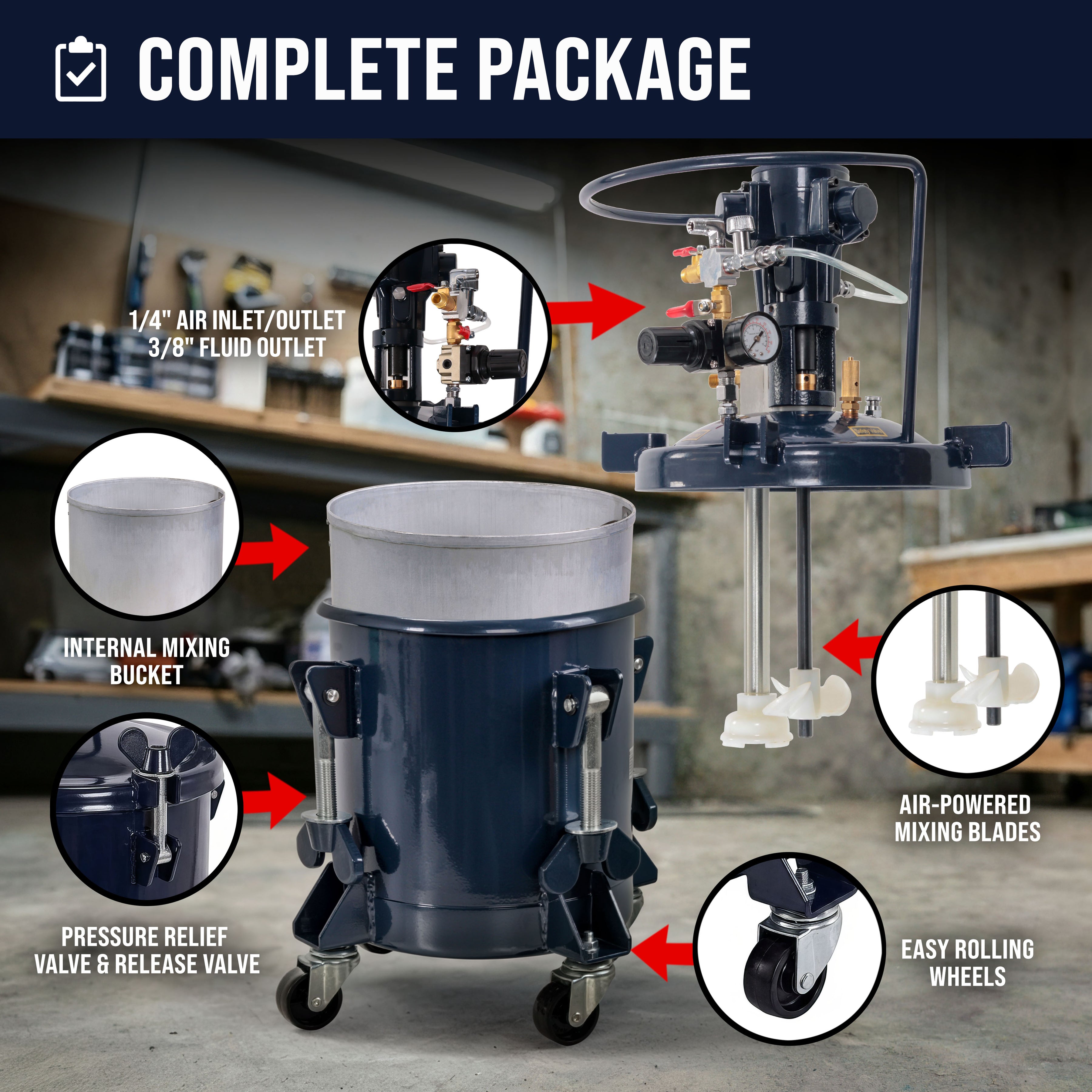

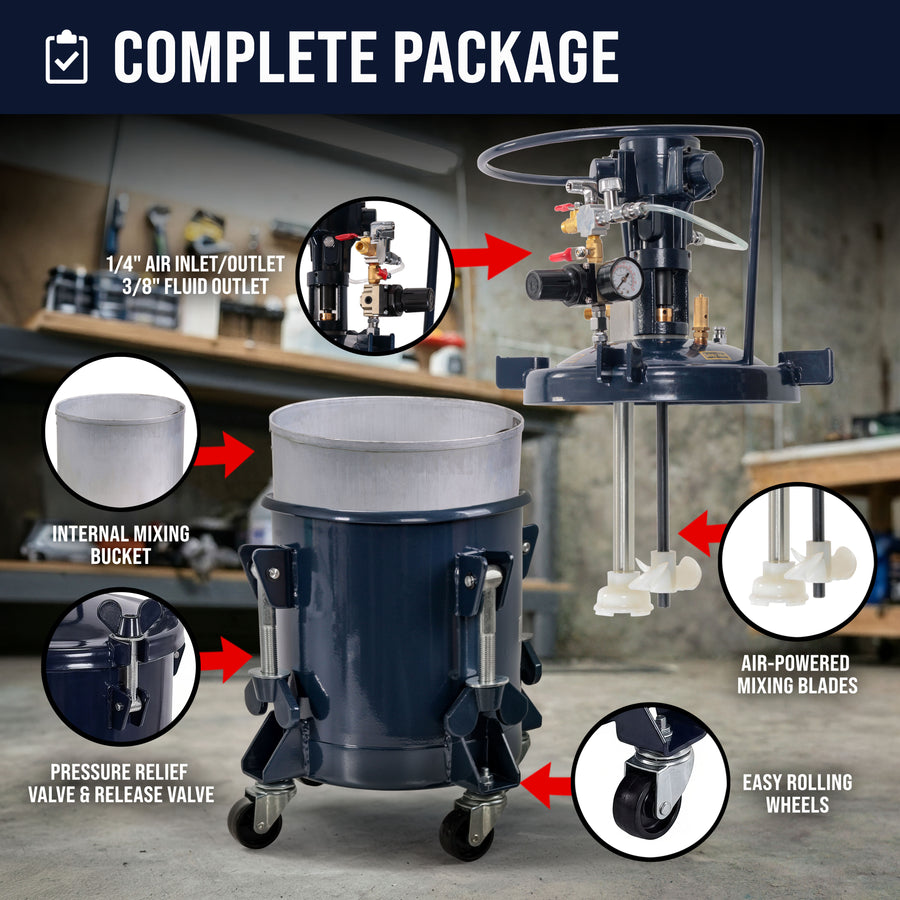

    • Air inlet and outlet: 1/4" Fluid outlet: 3/8"
    • Air pressure relief valve for safety set at 60 psi (4.0 bar)

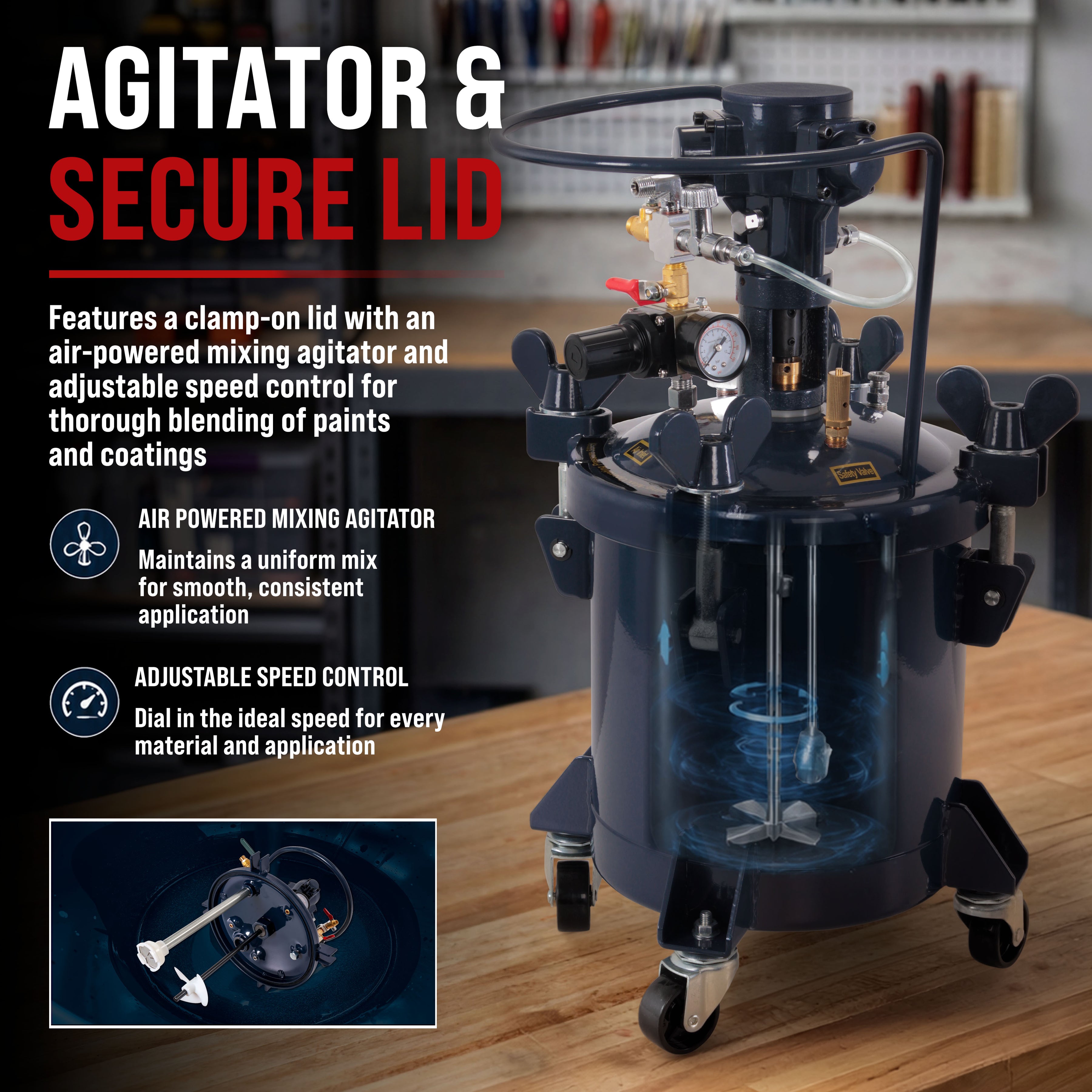

    • Air powered mixing agitator with adjustable speed control

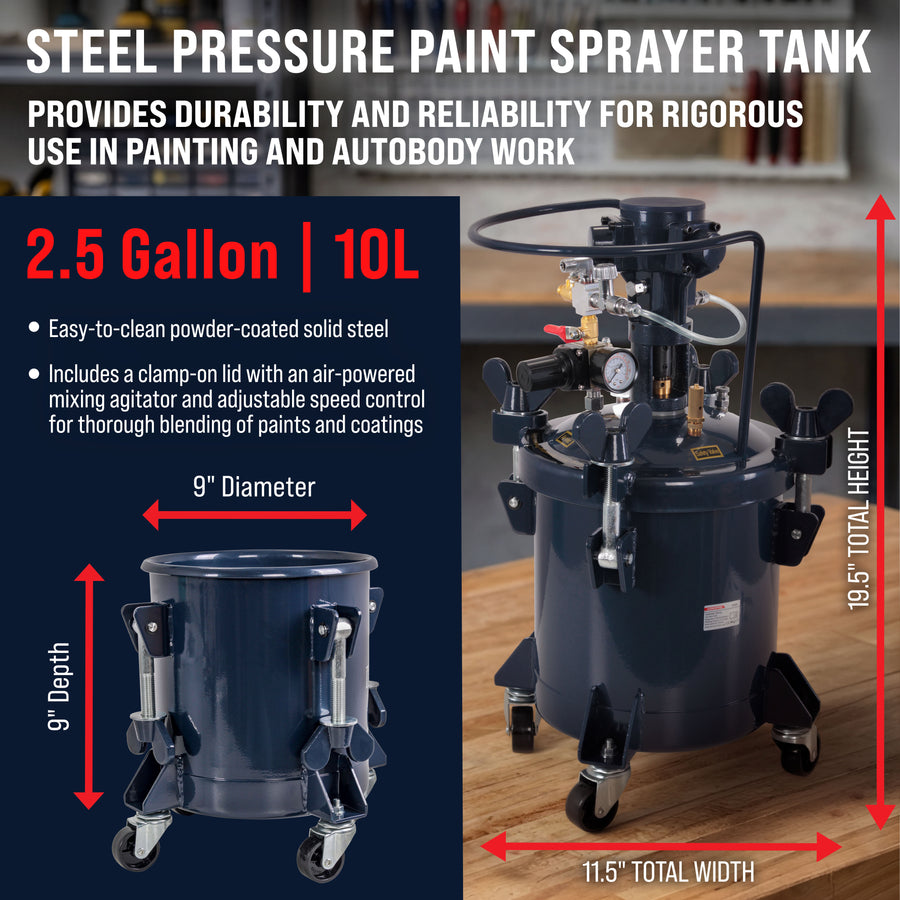

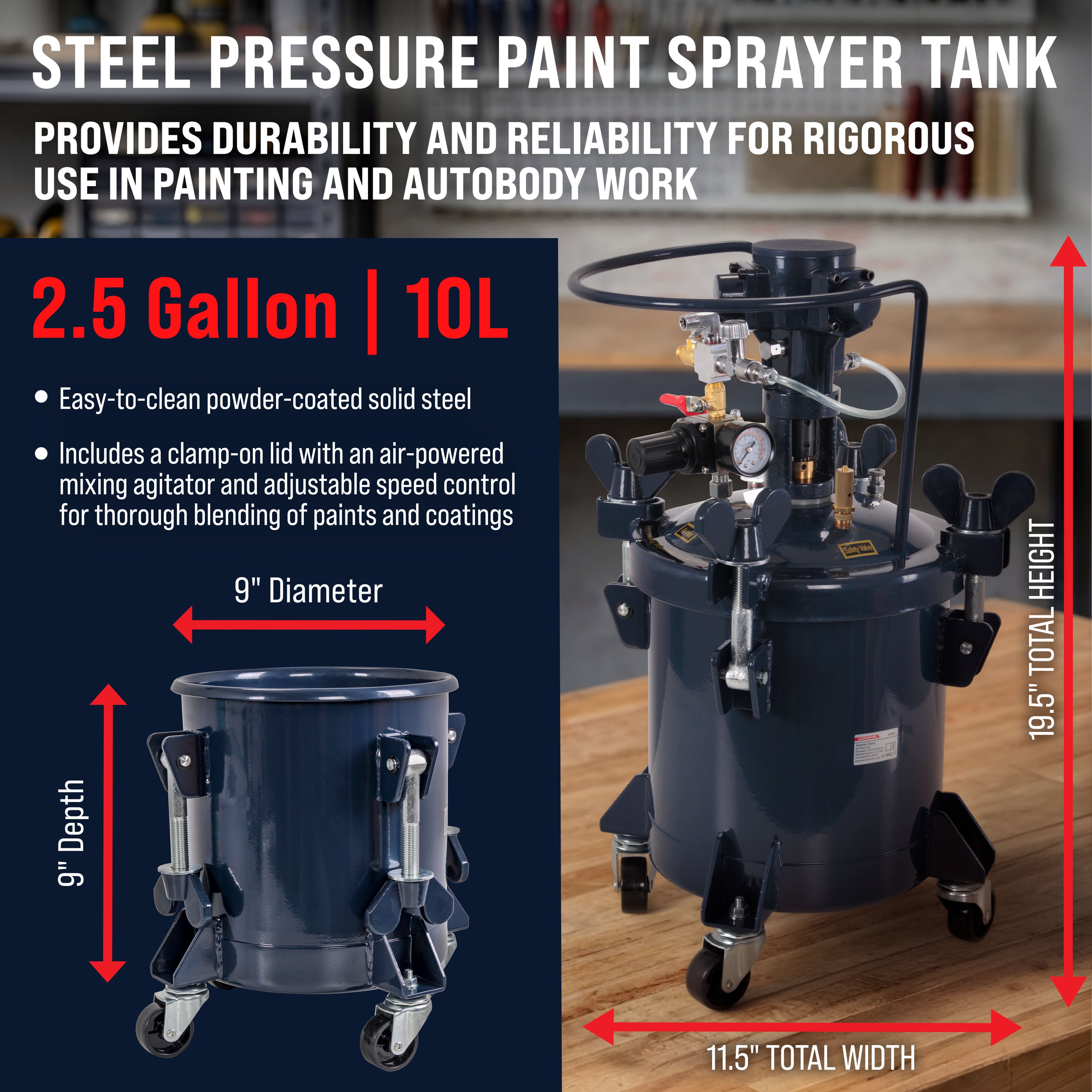

    • Overall dimensions: 25" H x 14" W x 11" D (635 x 350 x 280 mm)
    • Inside diameter: 9.5" (241 mm); Inside depth: 9.5" (241 mm)
    • 4 Easy roll casters and a wide base for increased stability (castors removable)
    • Fluid pickup tube has stainless filter screen
    • Shut off ball valves on fluid and air outlets
    • Items that can be used in the pot: 2.5 gallon tank liners, Devilbiss or Binks part# PT-52 (2.7 gallon tank liners), 1 gallon paint cans, paint buckets that are under 2.5 gallons.
    • Weight: 45 lbs.
    • Includes instruction manual
    • One year warranty
