Commercial 5 Gallon (20 Liters) Spray Paint Pressure Pot Tank with Manual Mixing Agitator

Commercial 5 Gallon (20 Liters) Spray Paint Pressure Pot Tank with Manual Mixing Agitator

Item#: TCP PT8361
Your everyday low price:
$299.99
Free Ground Shipping


USA OWNED & OPERATED
Since 1974

Details
  • Heavy duty paint pressure pot tank with 5 gallons (20 liters) capacity
  • Clamp on lid with manual hand crank mixing agitator
  • Tank fluid pressure gauge from 0 to 100 psi; Working pressure: Optimal 20-30 psi; Max operating pressure: 50 psi
  • Air inlet and outlet: 1/4"; Fluid outlet: 3/8"; Inside diameter: 12.3"; Inside depth: 12.5"
  • Excellent for Commercial Painting or Situations where a large amount of spraying is required.
Click to read more
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Weight: 56.0 lb

Overview

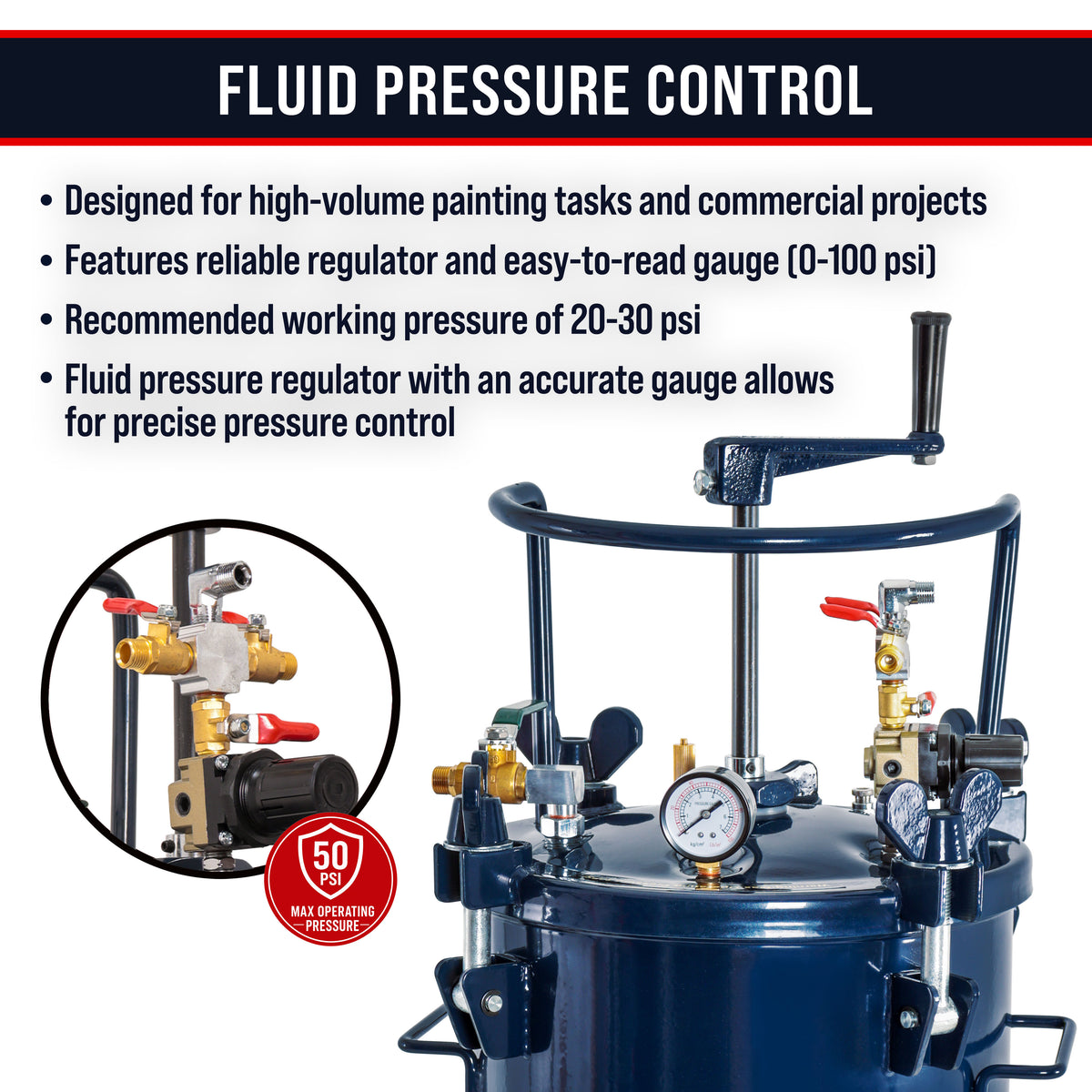

Heavy Duty 5 Gallon Pressure Pot Tank Specifications:

  • Paint pot capacity: 5 Gallons (20 Liters)
  • Powder coated tank finish that is easy to clean
  • Clamp on lid (4 clamps) with an air tight sealing gasket
  • Double output regulation
  • Tank fluid pressure gauge from 0 to 100 psi (0 to 7 bar)
  • Working pressure: Optimal 20-30 psi (1.4 to 2.1 bar); Max operating pressure: 50 psi
  • Air inlet and outlet: 1/4" Fluid outlet: 3/8"
  • Air pressure relief valve for safety set at 60 psi (4.0 bar)
  • Manual hand crank mixing agitator
  • Overall dimensions: 27" H x 14" W x 14" D (690 x 350 x 350 mm)
  • Inside diameter: 12.3" (312 mm); Inside depth: 12.5" (318 mm)
  • 4 Easy roll casters and a wide base for increased stability (castors removable)
  • Fluid pickup tube has stainless filter screen
  • Shut off ball valves on fluid and air outlets
  • Items that can be used in the pot: 5 gallon tank liners, 1 gallon paint cans, standard 5 gallon metal paint buckets or some styles of 5 gallon plastic buckets that are under the maximum inside clearance of 13.5" deep.
  • Convenient carrying handles
  • Weight: 37 lbs.
  • Includes instruction manual
  • One year warranty
