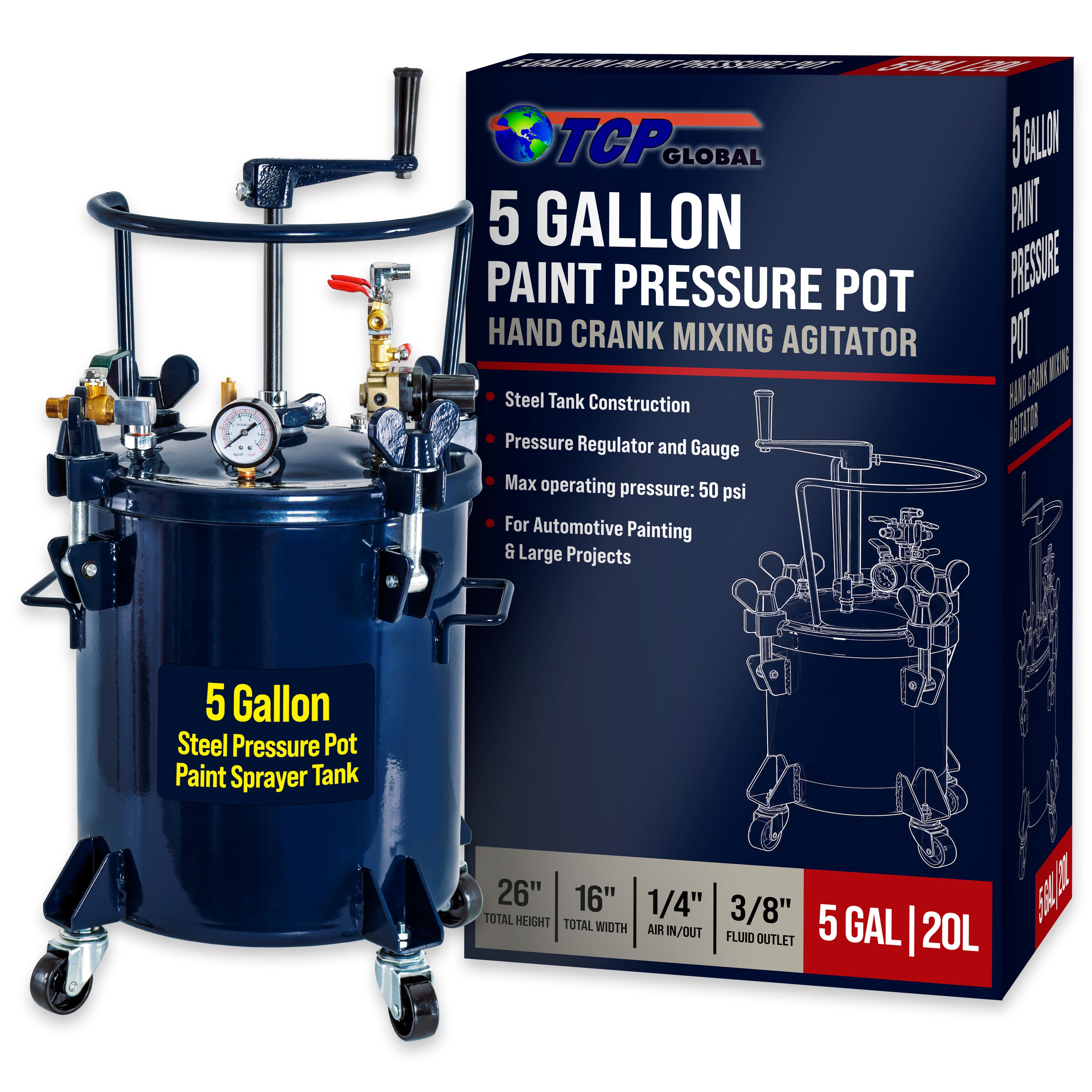

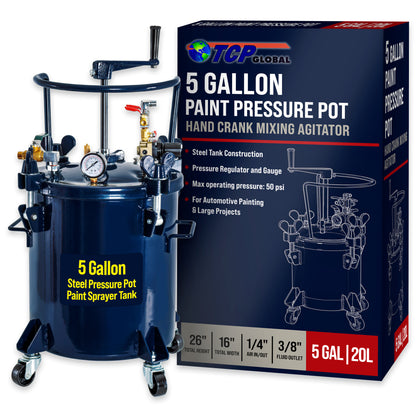

Commercial 5 Gallon (20 Liters) Spray Paint Pressure Pot Tank with Manual Mixing Agitator

Commercial 5 Gallon (20 Liters) Spray Paint Pressure Pot Tank with Manual Mixing Agitator

Item#: TCP PT8361
Your everyday low price:
$289.96
Free Ground Shipping
Free Ground Shipping


USA OWNED & OPERATED
Since 1974

Details
  • Heavy duty paint pressure pot tank with 5 gallons (20 liters) capacity

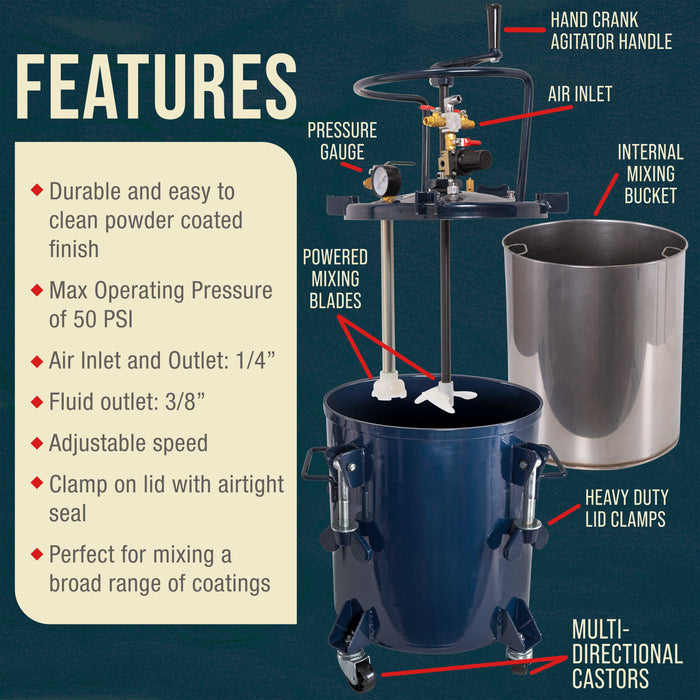

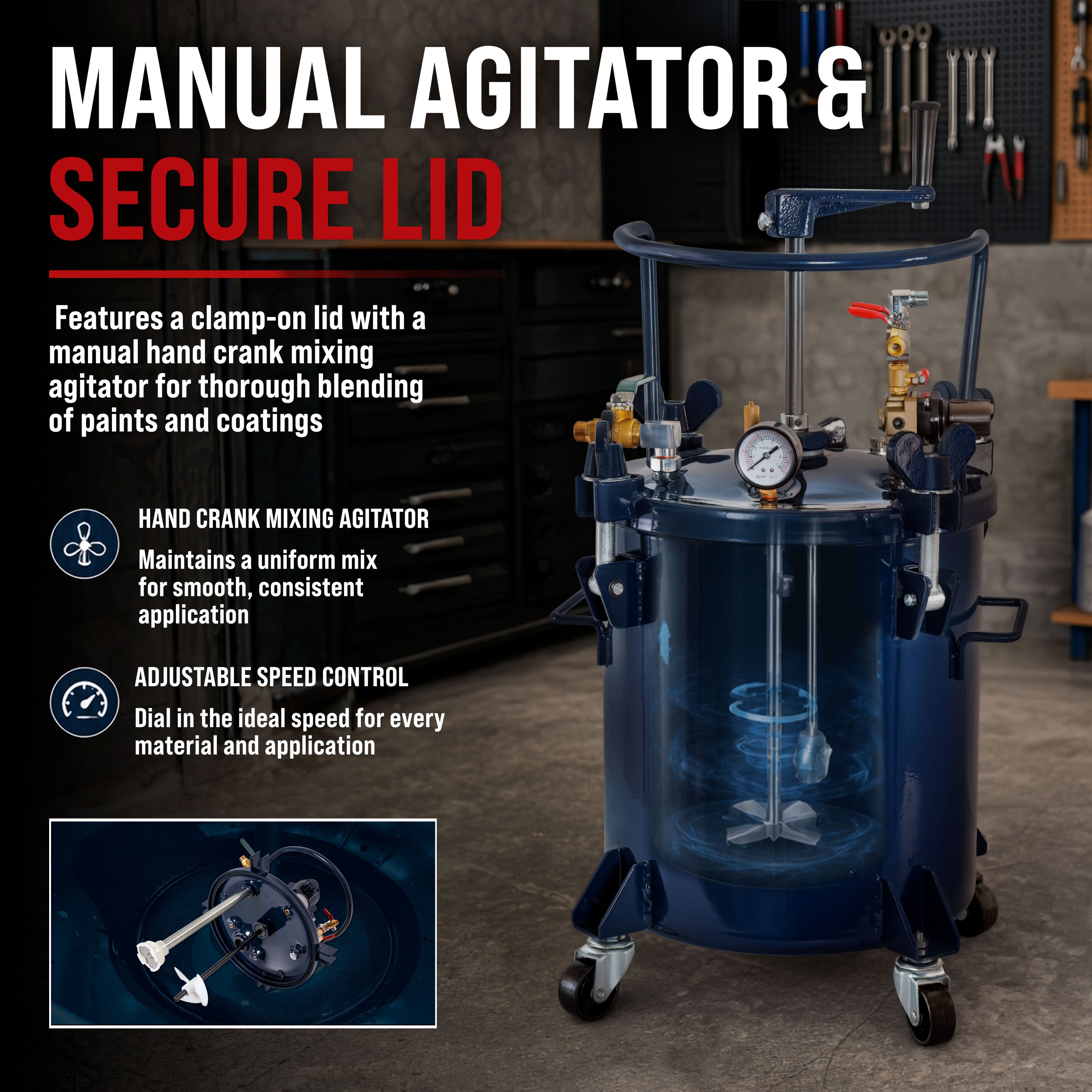

  • Clamp on lid with manual hand crank mixing agitator
  • Tank fluid pressure gauge from 0 to 100 psi; Working pressure: Optimal 20-30 psi; Max operating pressure: 50 psi
  • Air inlet and outlet: 1/4"; Fluid outlet: 3/8"; Inside diameter: 12.3"; Inside depth: 12.5"
  • Excellent for Commercial Painting or Situations where a large amount of spraying is required.
Click to read more
Weight: 56.0 lb

Overview

Heavy Duty 5 Gallon Pressure Pot Tank Specifications:

  • Paint pot capacity: 5 Gallons (20 Liters)
  • Powder coated tank finish that is easy to clean
  • Clamp on lid (4 clamps) with an air tight sealing gasket
  • Double output regulation

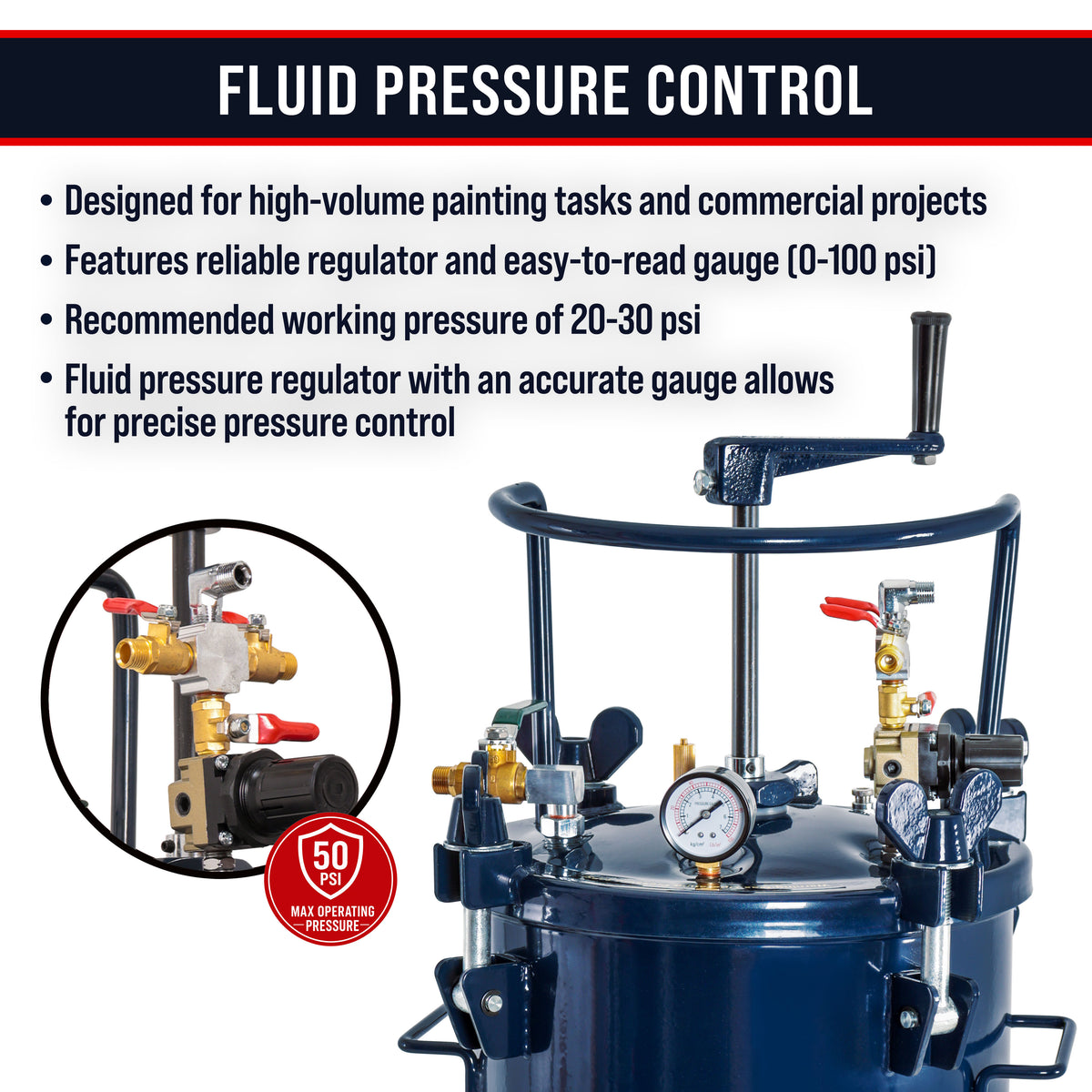

  • Tank fluid pressure gauge from 0 to 100 psi (0 to 7 bar)
  • Working pressure: Optimal 20-30 psi (1.4 to 2.1 bar); Max operating pressure: 50 psi

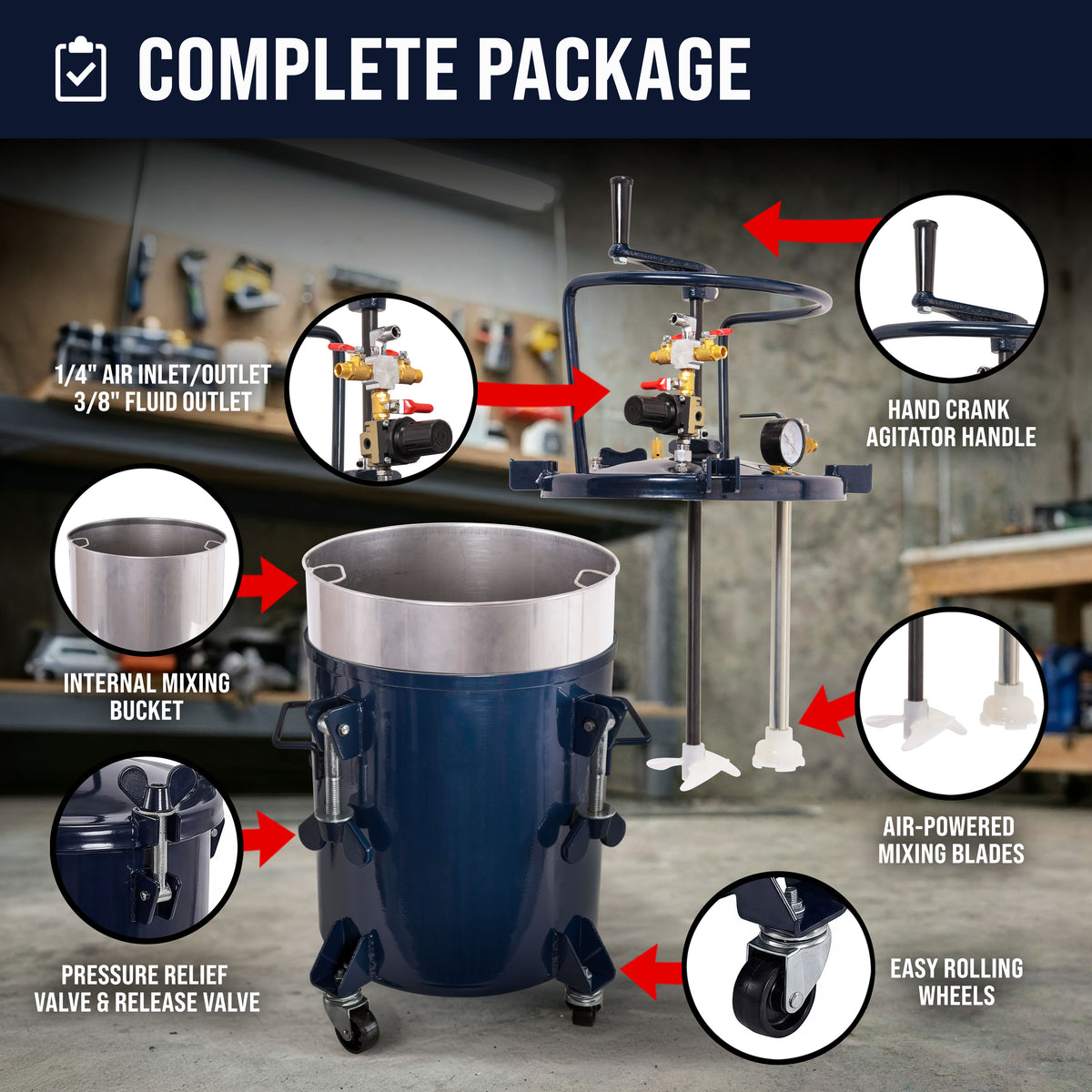

  • Air inlet and outlet: 1/4" Fluid outlet: 3/8"
  • Air pressure relief valve for safety set at 60 psi (4.0 bar)
  • Manual hand crank mixing agitator

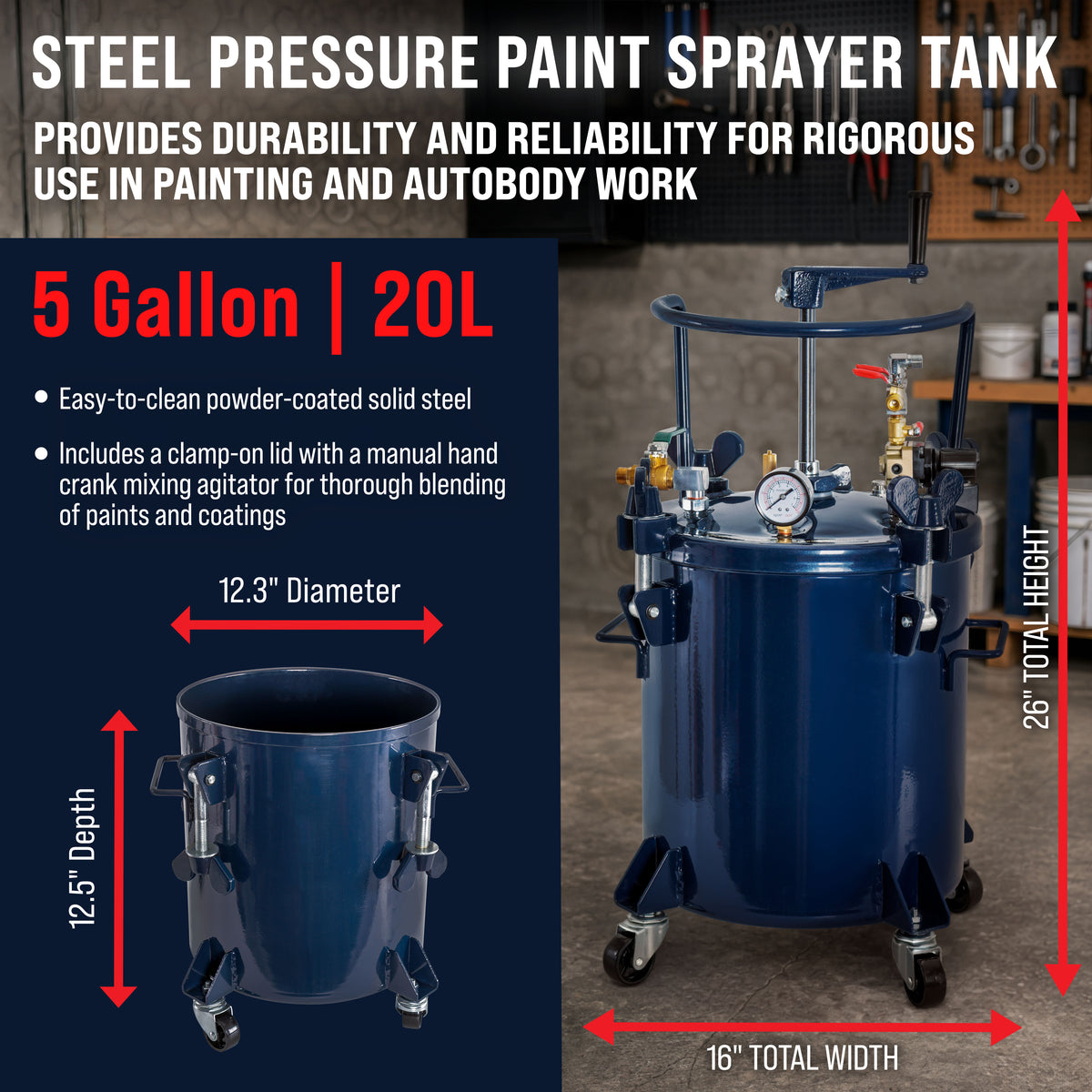

  • Overall dimensions: 27" H x 14" W x 14" D (690 x 350 x 350 mm)
  • Inside diameter: 12.3" (312 mm); Inside depth: 12.5" (318 mm)

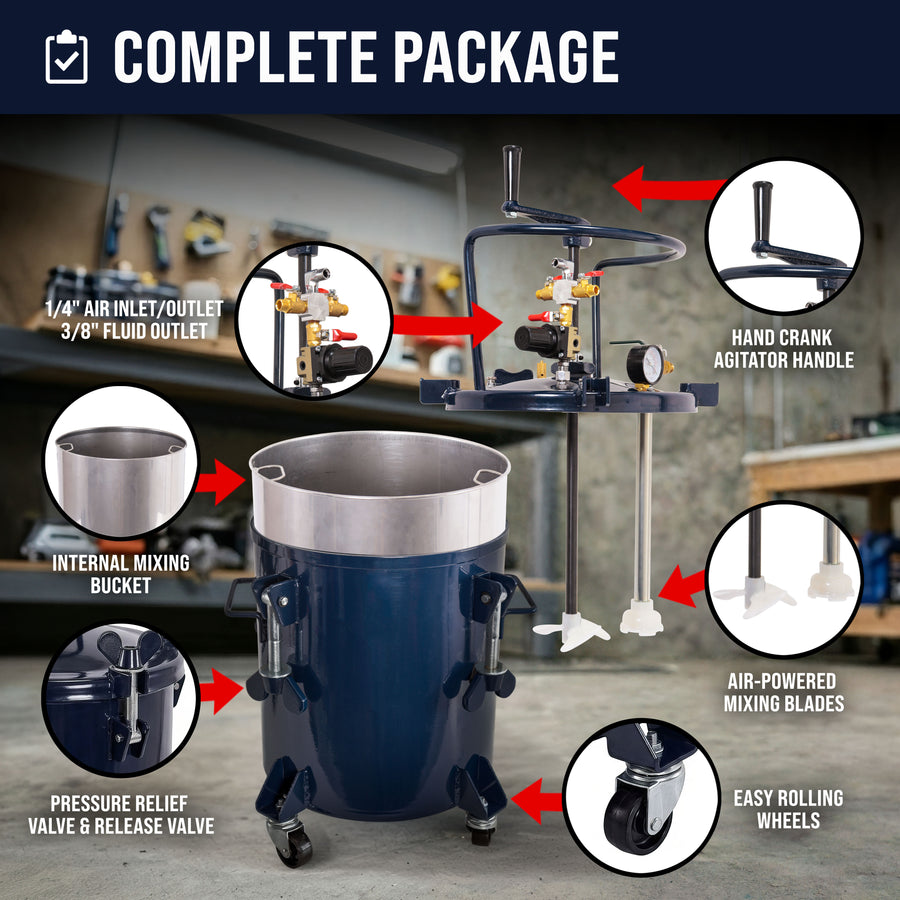

  • 4 Easy roll casters and a wide base for increased stability (castors removable)
  • Fluid pickup tube has stainless filter screen
  • Shut off ball valves on fluid and air outlets
  • Items that can be used in the pot: 5 gallon tank liners, 1 gallon paint cans, standard 5 gallon metal paint buckets or some styles of 5 gallon plastic buckets that are under the maximum inside clearance of 13.5" deep.
  • Convenient carrying handles
  • Weight: 37 lbs.
  • Includes instruction manual
  • One year warranty
