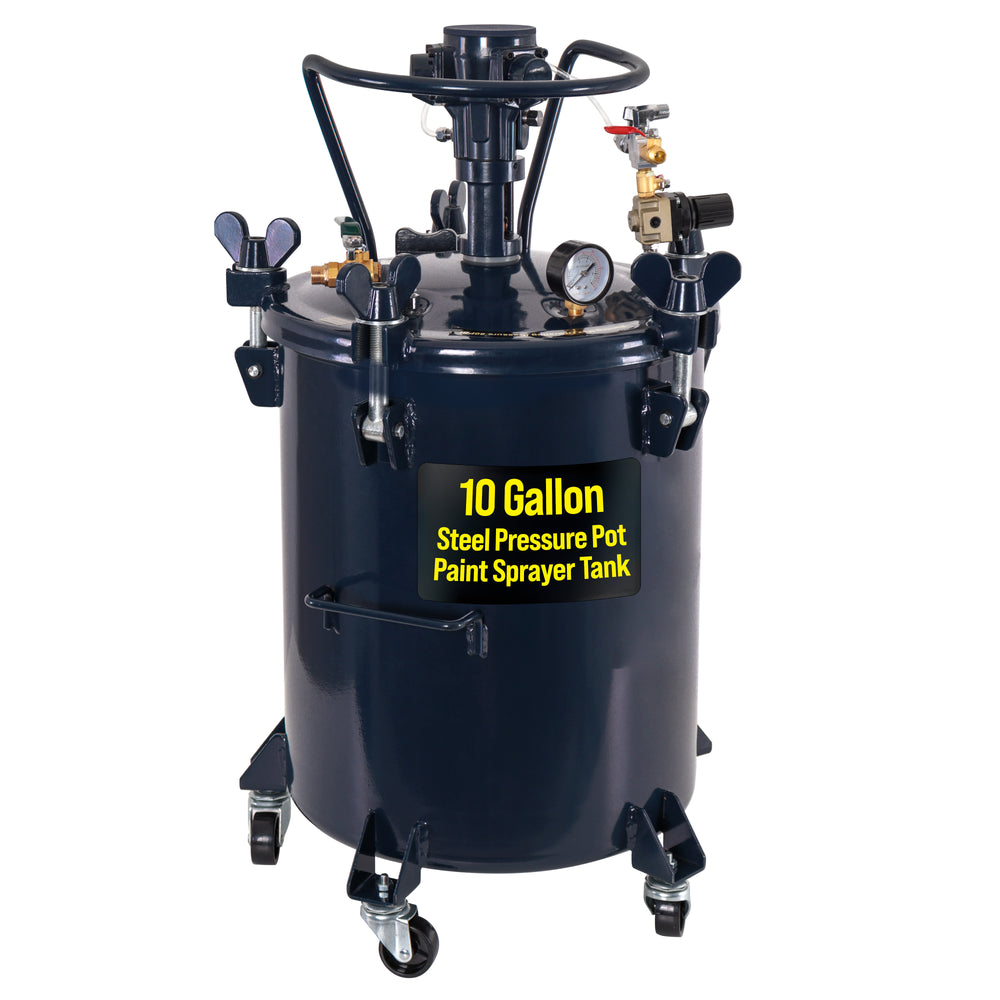

Commercial 10 Gallon (40 Liters) Spray Paint Pressure Pot Tank with Air Powered Mixing Agitator

Commercial 10 Gallon (40 Liters) Spray Paint Pressure Pot Tank with Air Powered Mixing Agitator

Item#: TCP PT8317
Your everyday low price:
$759.99
Free Ground Shipping


USA OWNED & OPERATED
Since 1974

Details
  • Heavy duty paint pressure pot tank with 10 gallon (40 liters) capacity
  • Clamp on lid with air powered mixing agitator with adjustable speed control
  • Tank fluid pressure gauge from 0 to 100 psi; Working pressure: Optimal 20-30 psi; Max operating pressure: 50 psi
  • Air inlet and outlet: 1/4"; Fluid outlet: 3/8"; Inside diameter: 14.5"; Inside depth: 16.5"
  • Excellent for Commercial Painting or Situations where a large amount of spraying is required.
Click to read more
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Weight: 85.0 lb

Overview

Commercial 10 Gallon (40 Liters) Spray Paint Pressure Pot Tank with Air Powered Mixing Agitator

Excellent for Commercial Painting or Situations where a large amount of spraying is required. The Spray System gives you the benefit of storing a large volume of paint that can be applied rapidly, saving you time and money. Can be used with a broad range of coatings like automotive, oil based, latex, varnishes, lacquers, primers, wood coatings, adhesives and more!

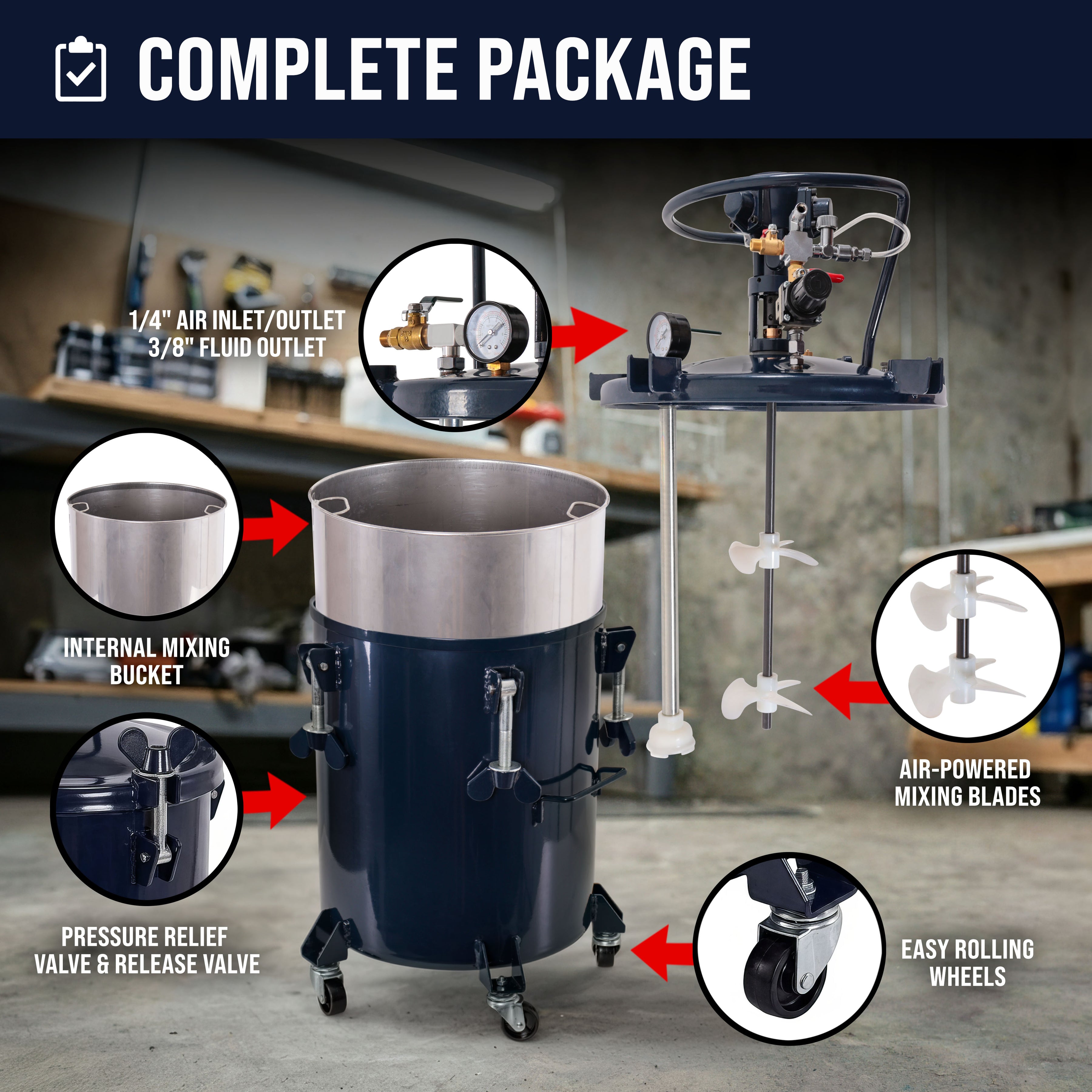

Heavy Duty 10 Gallon Pressure Pot Tank Specifications:
  • Paint pot capacity: 10 Gallons (40 Liters)
  • Powder coated tank finish that is easy to clean
  • Clamp on lid (5 clamps) with an air tight sealing gasket
  • Double output regulation

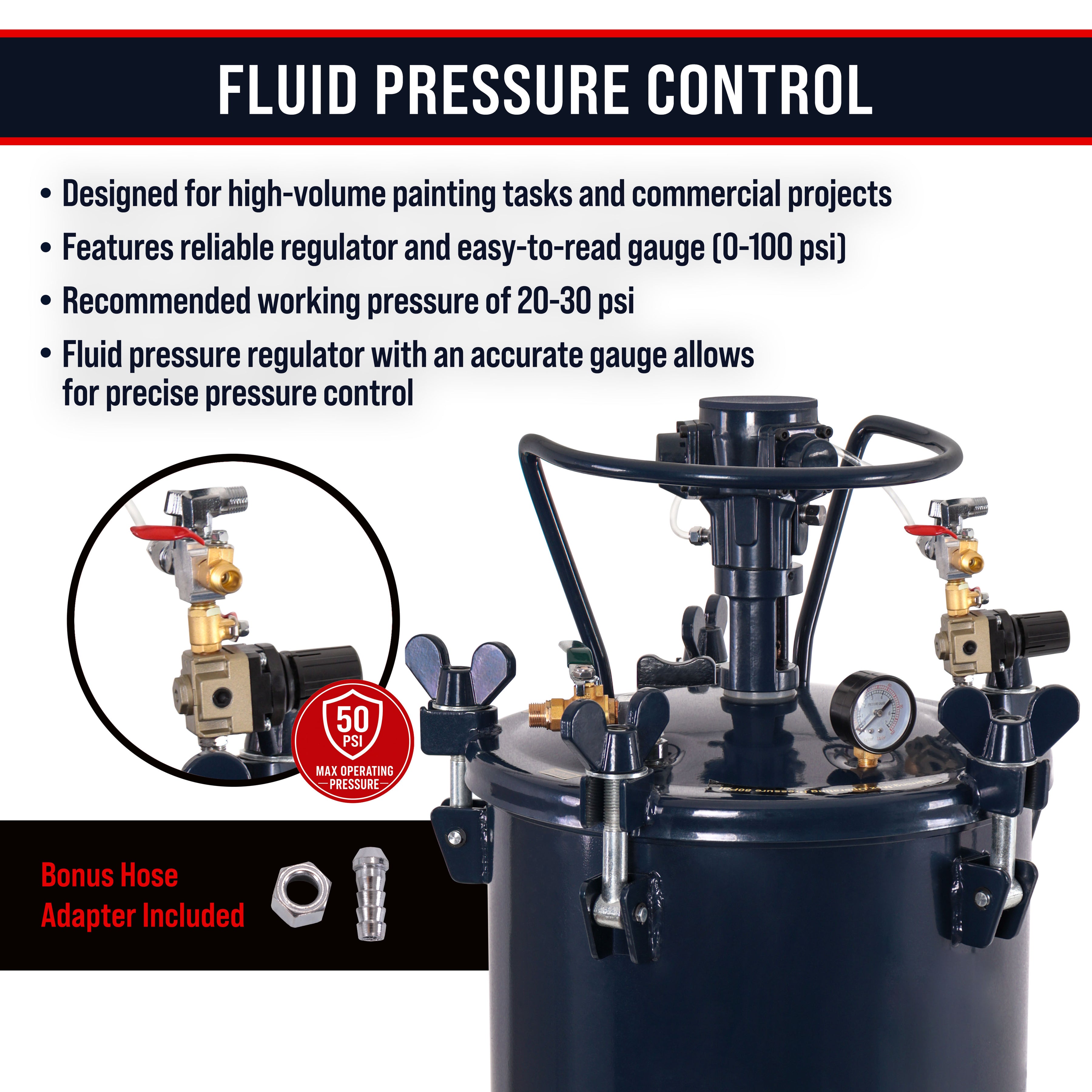

  • Tank fluid pressure gauge from 0 to 100 psi (0 to 7 bar)
  • Working pressure: Optimal 20-30 psi (1.4 to 2.1 bar); Max operating pressure: 50 psi
  • Air inlet and outlet: 1/4 in.; Fluid outlet: 3/8 in.
  • Air pressure relief valve for safety set at 60 psi (4.0 bar)

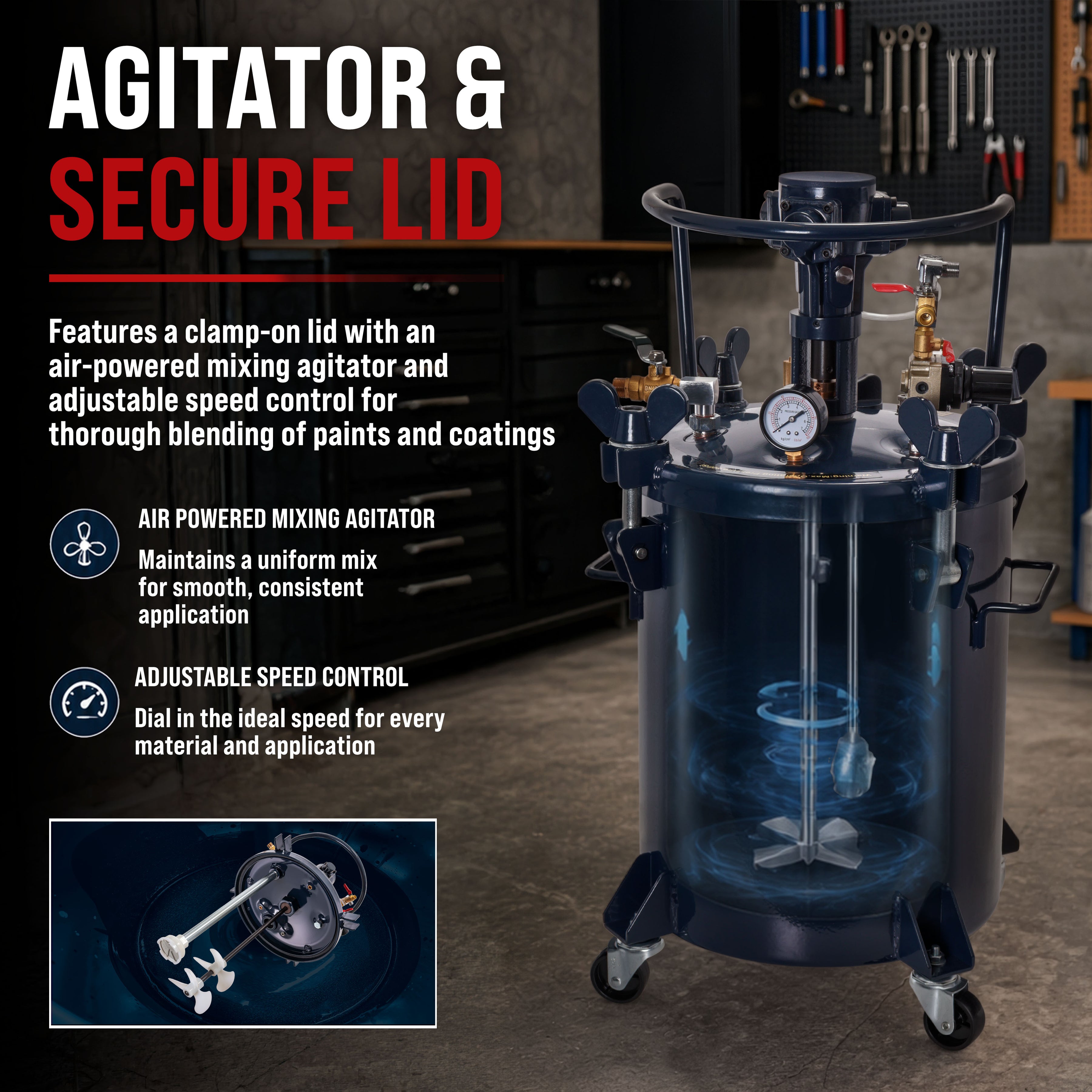

  • Air powered mixing agitator with adjustable speed control

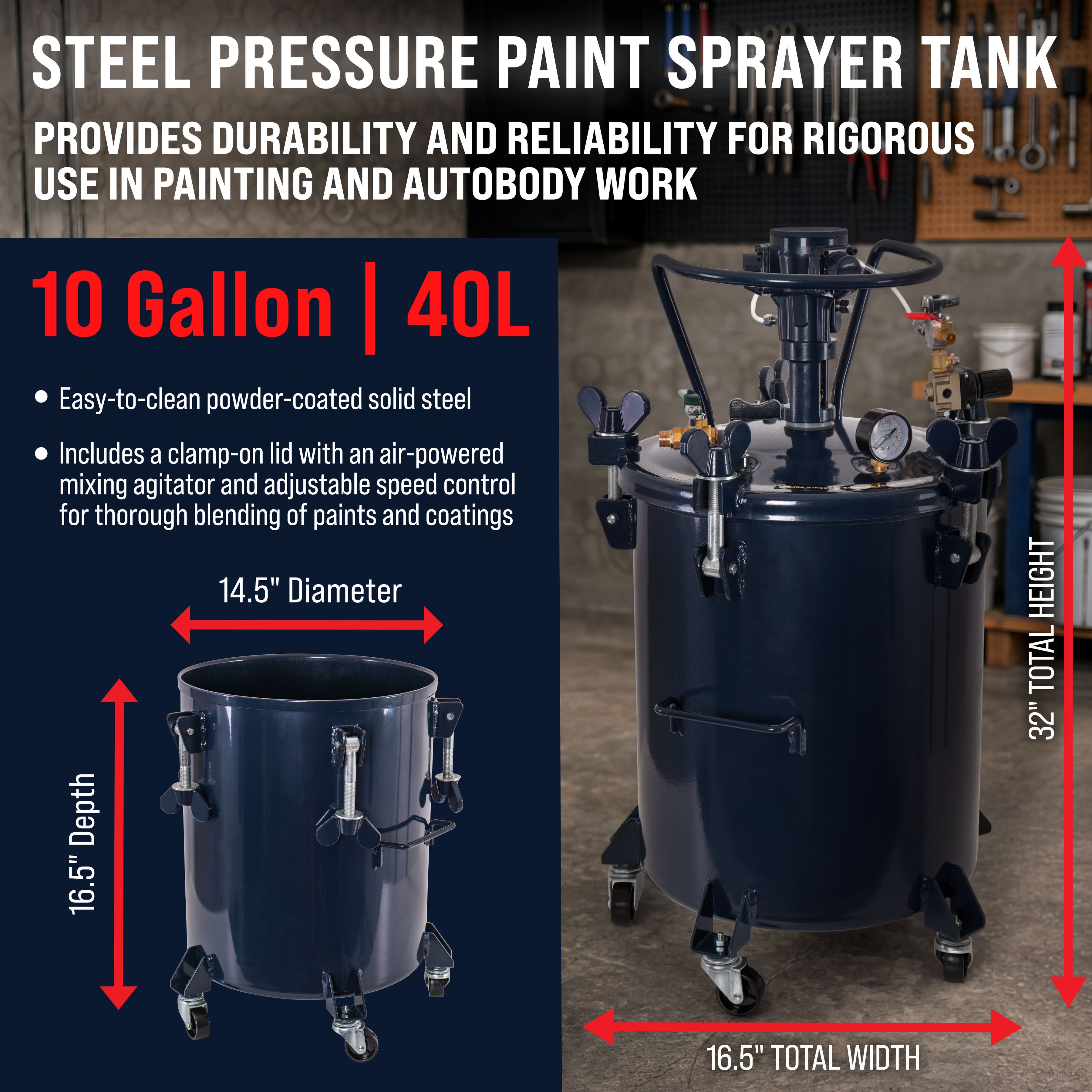

  • Overall dimensions: 32 in. H x 16.5 in. W x 16.0 in. D (810 x 420 x 405 mm)
  • Inside diameter: 14.5 in. (370 mm); Inside depth: 16.5 in. (420 mm)
  • 5 Easy roll casters and a wide base for increased stability (castors removable)
  • Fluid pickup tube has stainless filter screen
  • Shut off ball valves on fluid and air outlets

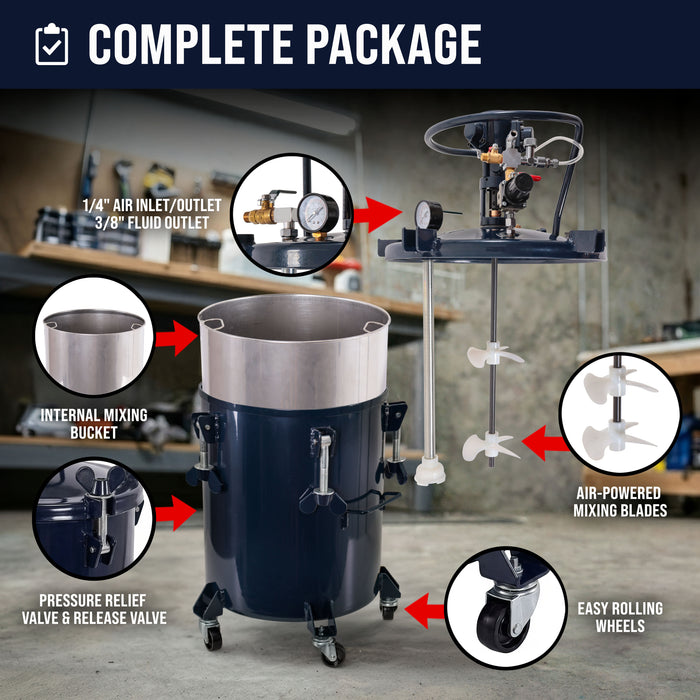

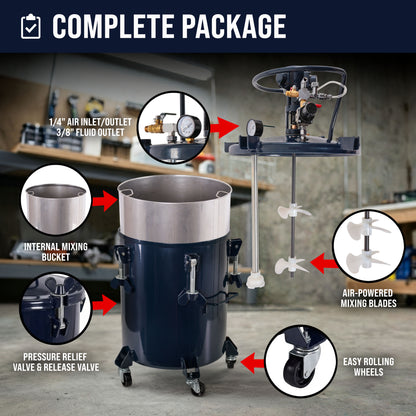

  • Includes a removable 10 gallon aluminum fluid liner bucket with handles
  • Items that can be used in the pot: 10 gallon tank liners, 5 gallon metal or plastic paint buckets, Binks or Devilbiss 10 gallon tank liners (# PTL-410-K8 & PTL-412-K8), etc...
  • Weight: 85 lbs.
  • Includes instruction manual
  • One year warranty
