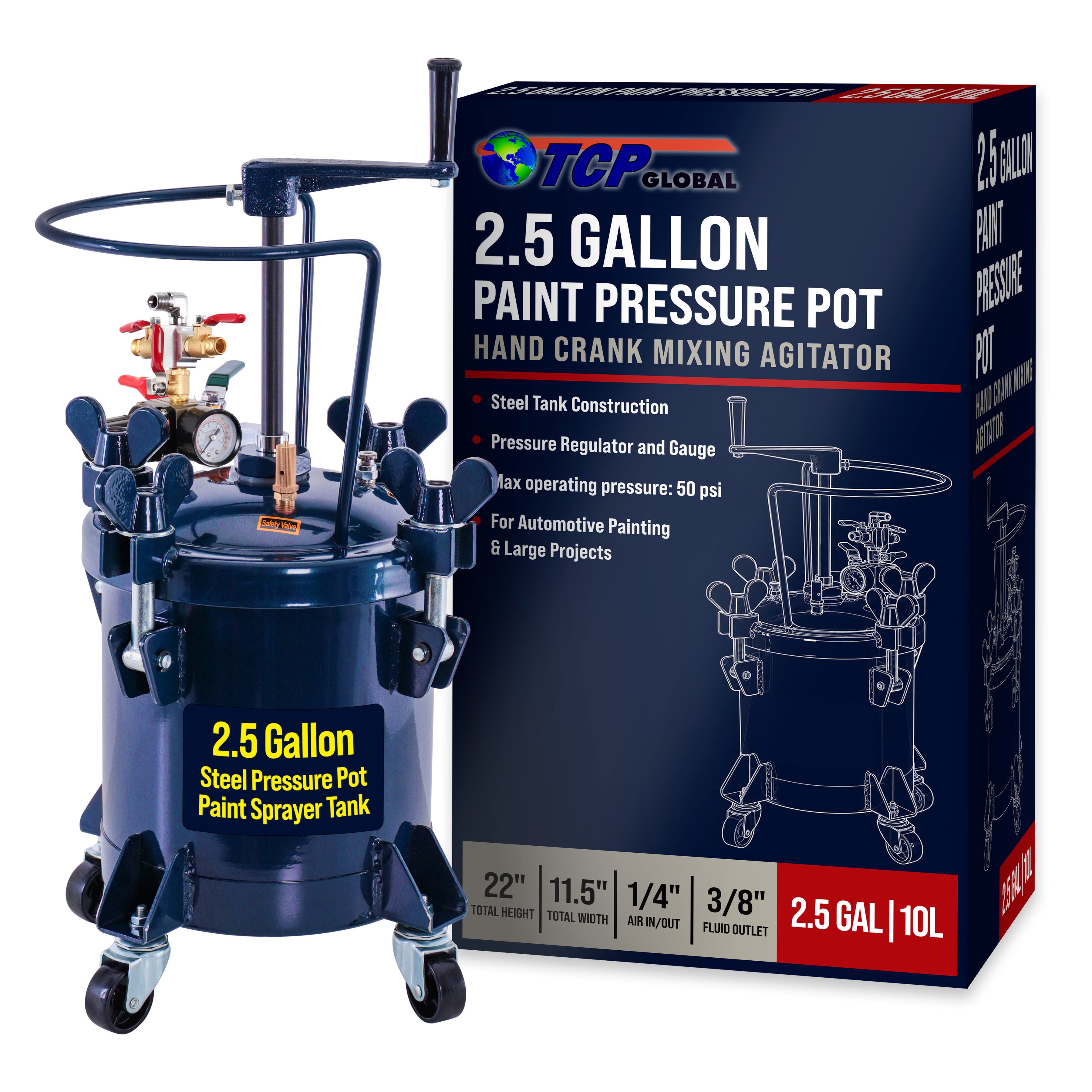

Commercial 2.5 Gallon (10 Liters) Spray Paint Pressure Pot Tank with Manual Mixing Agitator

Commercial 2.5 Gallon (10 Liters) Spray Paint Pressure Pot Tank with Manual Mixing Agitator

Item#: TCP PT8318
Your everyday low price:
$169.96
Free Ground Shipping
Free Ground Shipping


USA OWNED & OPERATED
Since 1974

Details
  • Heavy duty paint pressure pot tank with 2.5 gallons (10 liters) capacity

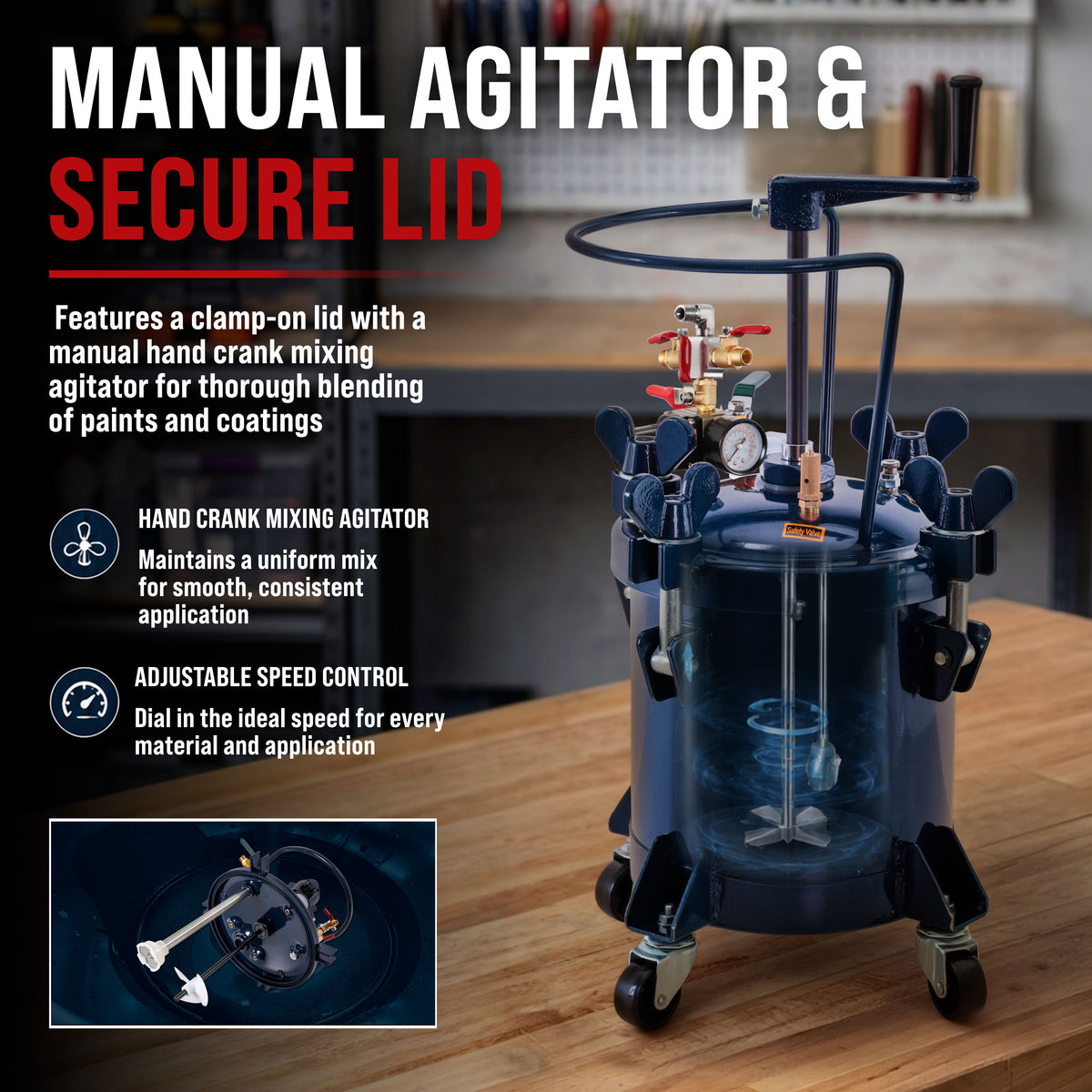

  • Clamp on lid with manual hand crank mixing agitator

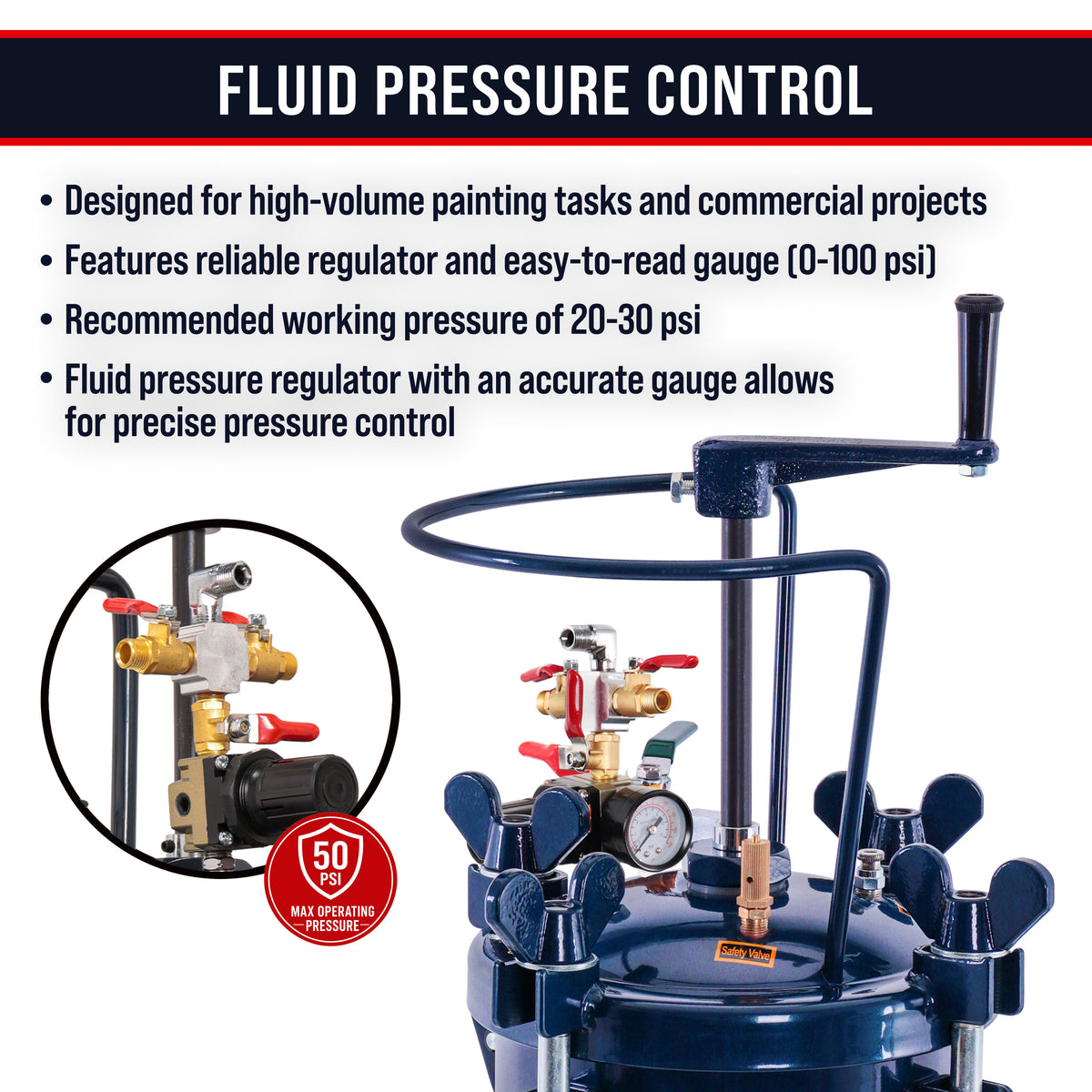

  • Tank fluid pressure gauge from 0 to 100 psi; Working pressure: Optimal 20-30 psi; Max operating pressure: 50 psi
  • Air inlet and outlet: 1/4"; Fluid outlet: 3/8"; Inside diameter: 9.5"; Inside depth: 9.5"

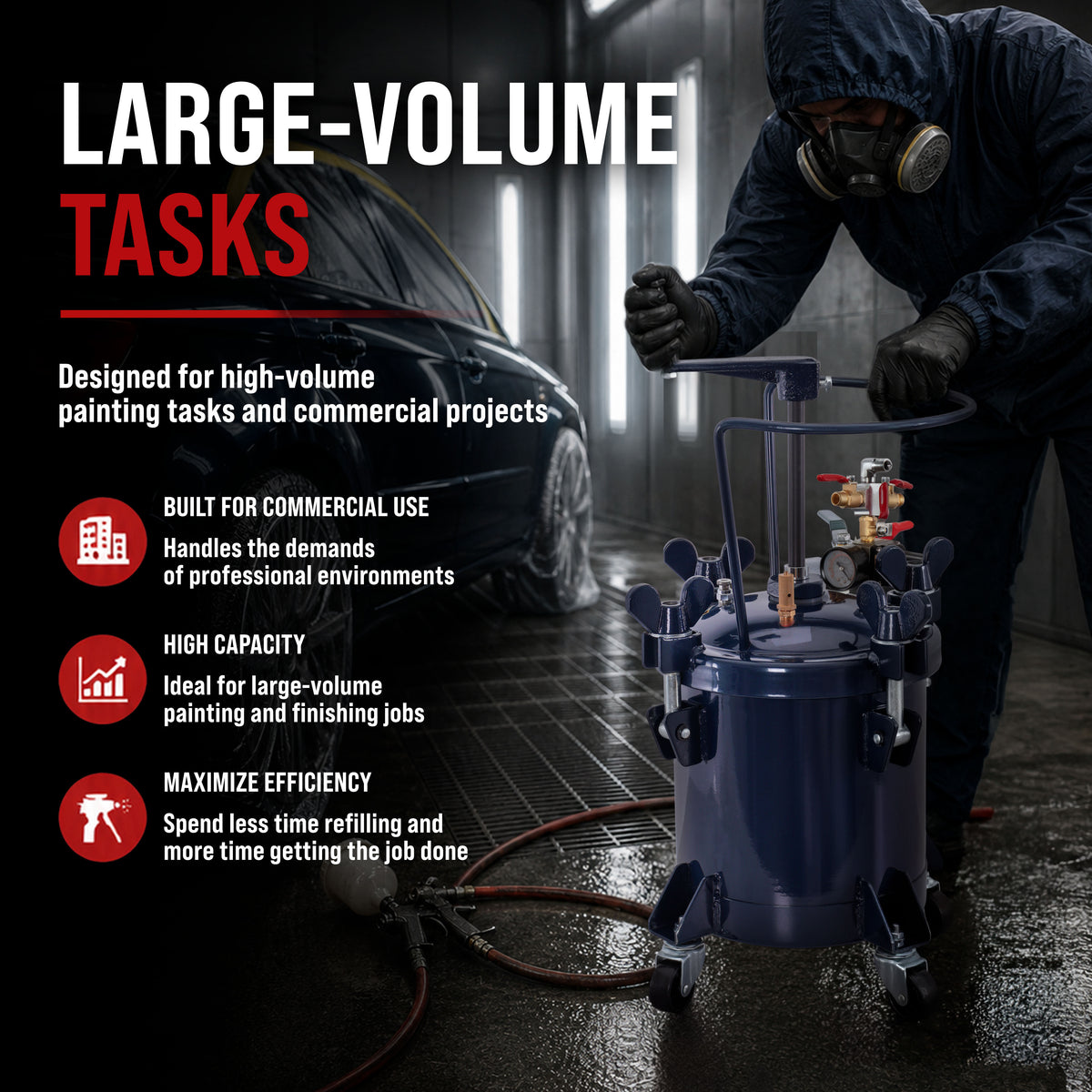

  • Excellent for Commercial Painting or Situations where a large amount of spraying is required.
Click to read more
Weight: 42.0 lb

Overview

Heavy Duty 2.5 Gallon Pressure Pot Tank Specifications:

  • Paint pot capacity: 2.5 Gallons (10 Liters)
  • Powder coated tank finish that is easy to clean
  • Clamp on lid (4 clamps) with an air tight sealing gasket
  • Double output regulation
  • Tank fluid pressure gauge from 0 to 100 psi (0 to 7 bar)
  • Working pressure: Optimal 20-30 psi (1.4 to 2.1 bar); Max operating pressure: 50 psi
  • Air inlet and outlet: 1/4" Fluid outlet: 3/8"
  • Air pressure relief valve for safety set at 60 psi (4.0 bar)
  • Manual hand crank mixing agitator

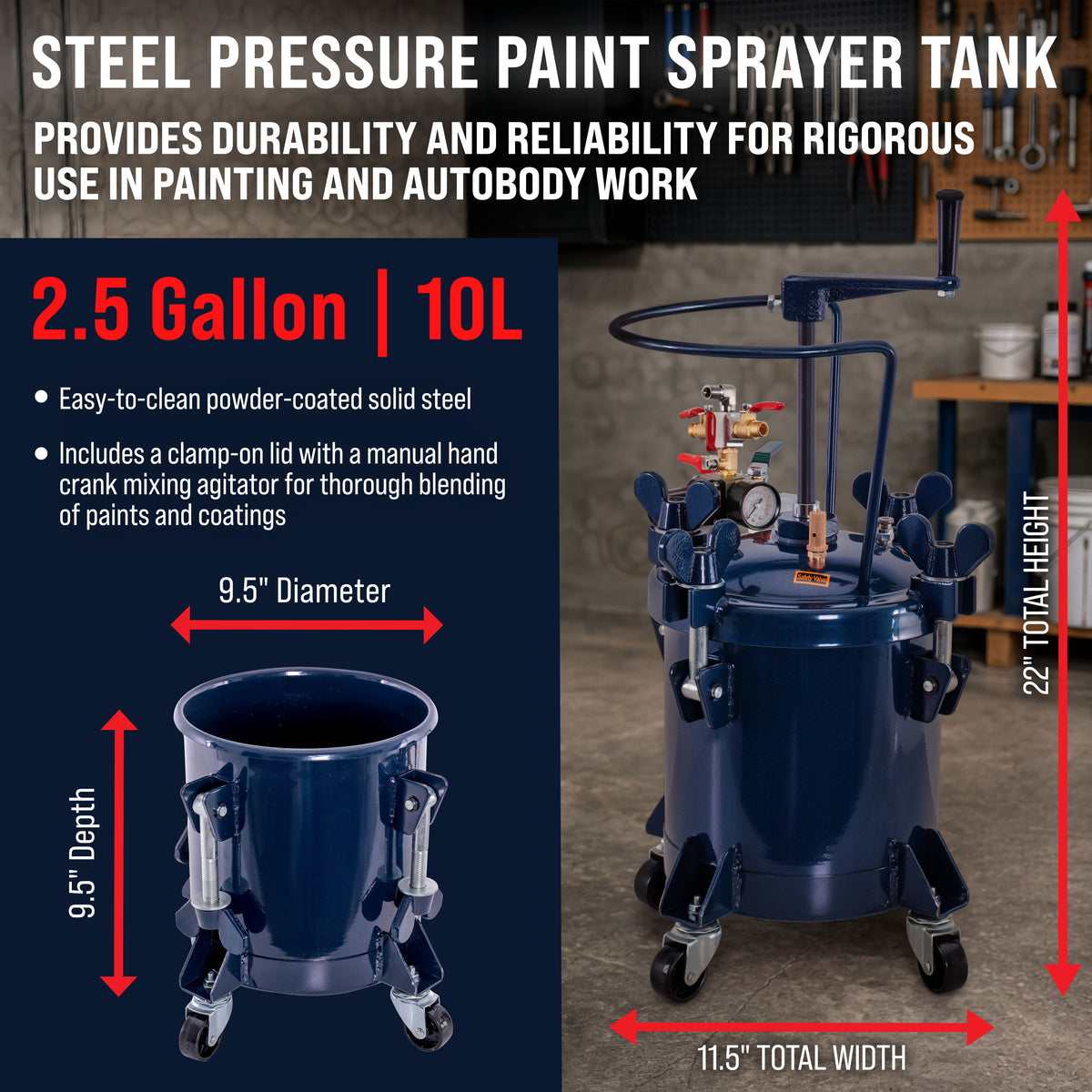

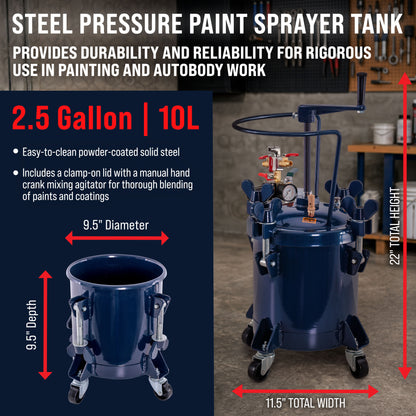

  • Overall dimensions: 25" H x 14" W x 11" D (635 x 350 x 280 mm)
  • Inside diameter: 9.5" (241 mm); Inside depth: 9.5" (241 mm)
  • 4 Easy roll casters and a wide base for increased stability (castors removable)
  • Fluid pickup tube has stainless filter screen
  • Shut off ball valves on fluid and air outlets

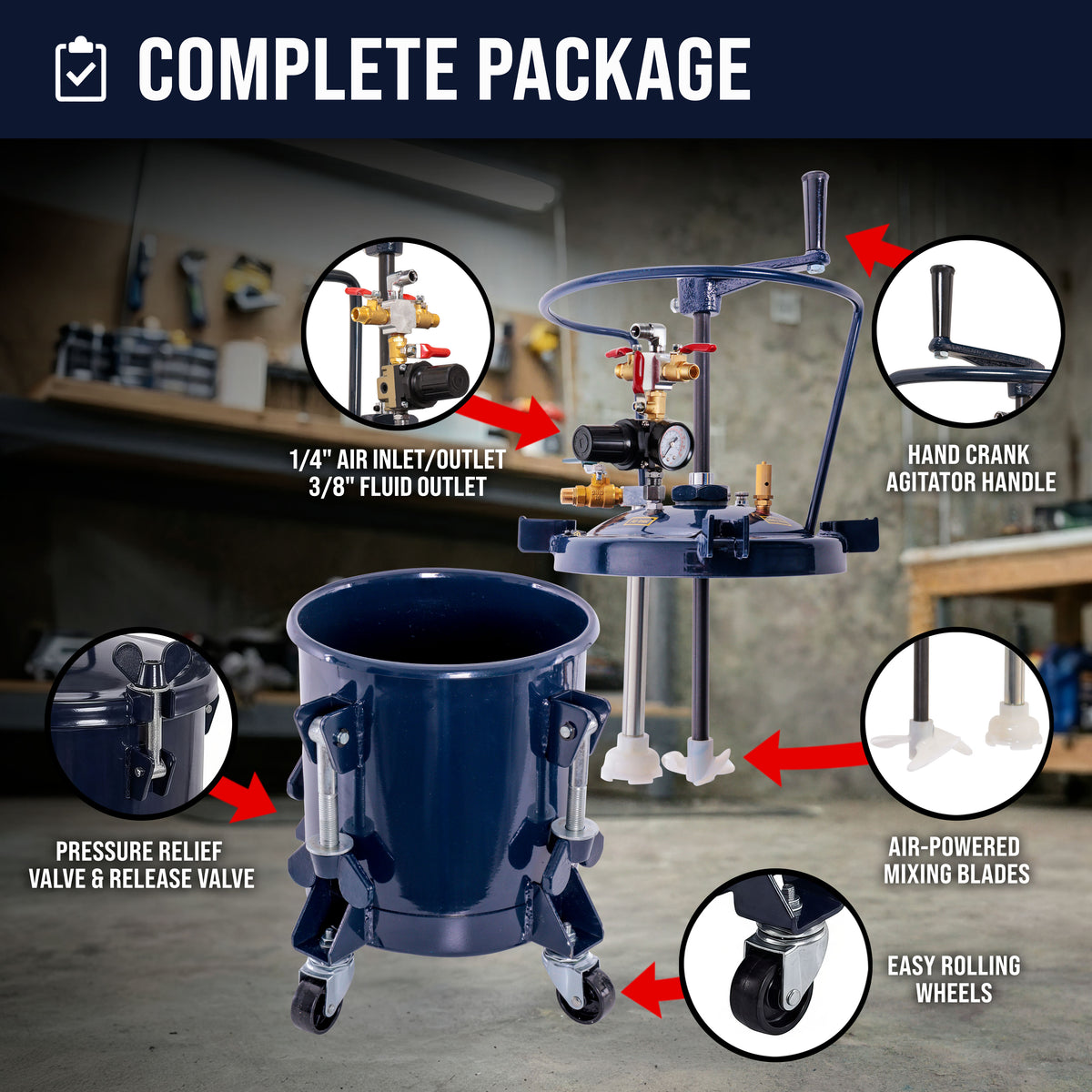

  • Includes a removable 2 gallon aluminum fluid liner bucket with handles
  • Items that can be used in the pot: 2.5 gallon tank liners, Devilbiss or Binks part# PT-52 (2.7 gallon tank liners), 1 gallon paint cans, paint buckets that are under 2.5 gallons.
  • Weight: 37 lbs.
  • Includes instruction manual
  • One year warranty
