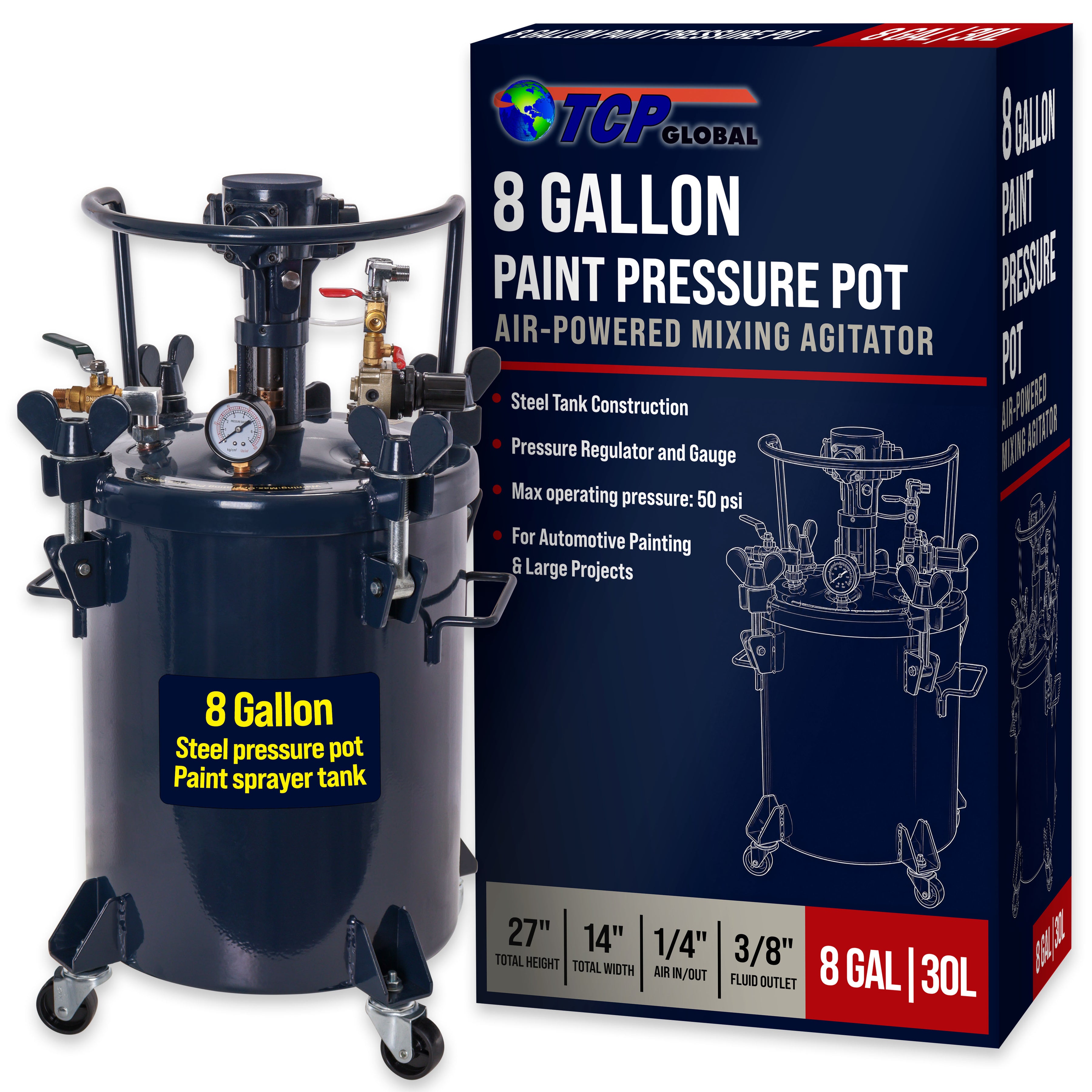

Commercial 8 Gallon (30 Liters) Spray Paint Pressure Pot Tank with Air Powered Mixing Agitator

Commercial 8 Gallon (30 Liters) Spray Paint Pressure Pot Tank with Air Powered Mixing Agitator

Item#: TCP PT8311
Your everyday low price:
Free Ground Shipping

Since 1974

  • Heavy-Duty Construction: 8 Gallon (30 Liter) Capacity - Constructed from an easy to clean powder coated solid steel. Provides durability and reliability for heavy usage in painting and autobody work.

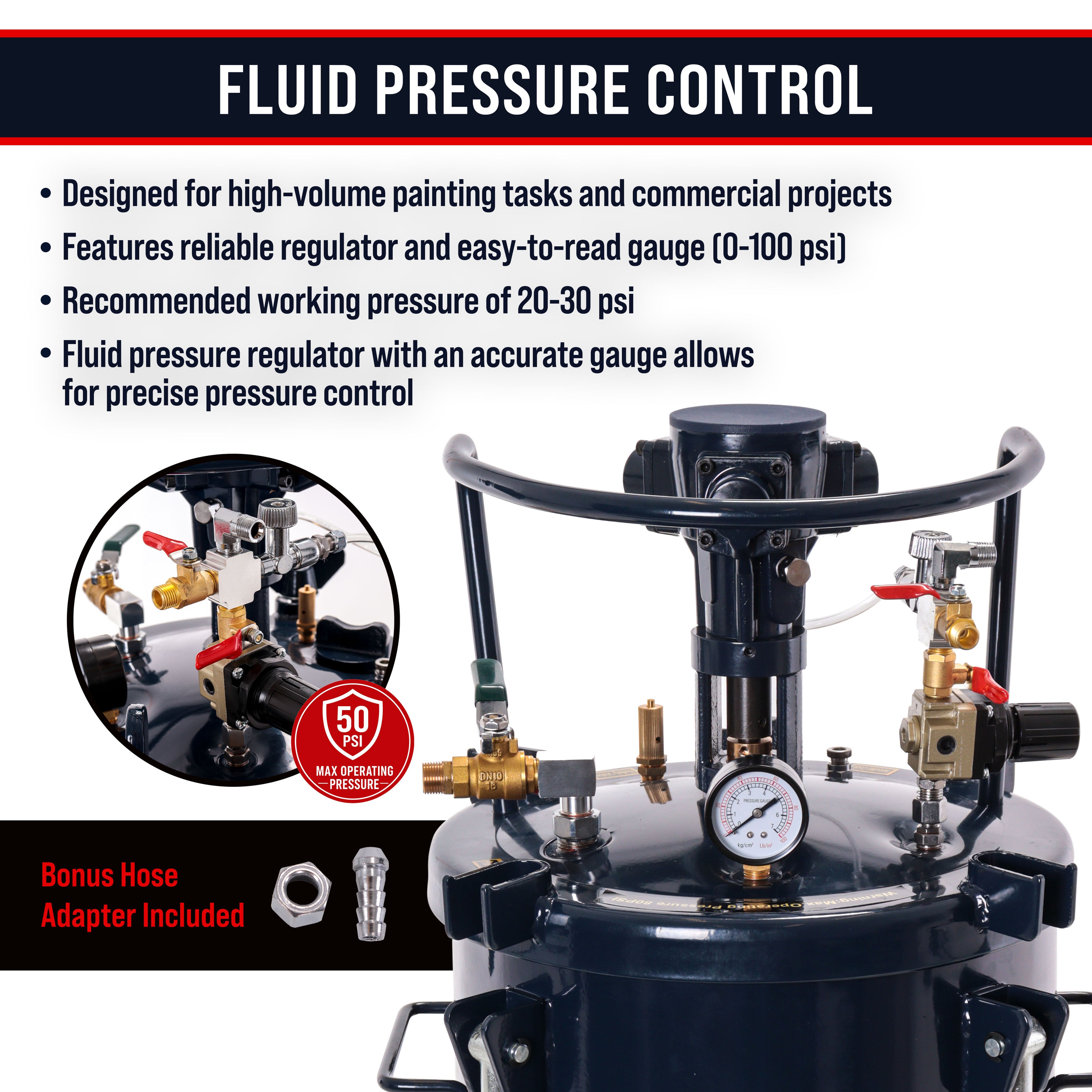

  • Precise Regulation: Includes a fluid pressure regulator with gauge for accurate pressure control. Tank fluid pressure gauge from 0 to 100 psi; Working pressure: Optimal 20-30 psi; Max operating pressure: 50 psi.

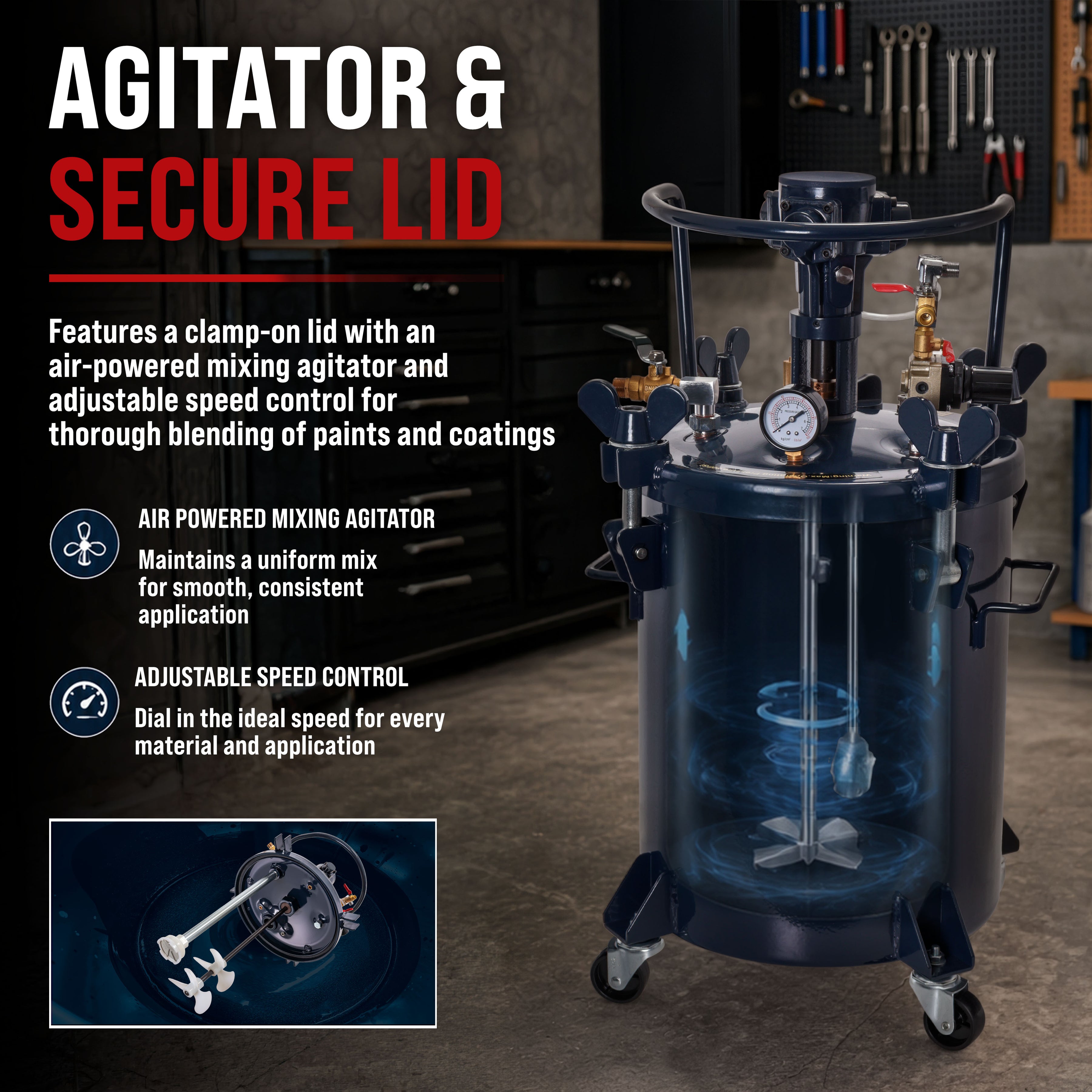

  • Secure Lid Design: Features a clamp-on lid with an air-powered mixing agitator and adjustable speed control, allowing for thorough mixing of paint and other coatings. Air inlet and outlet: 1/4"; Fluid outlet: 3/8"

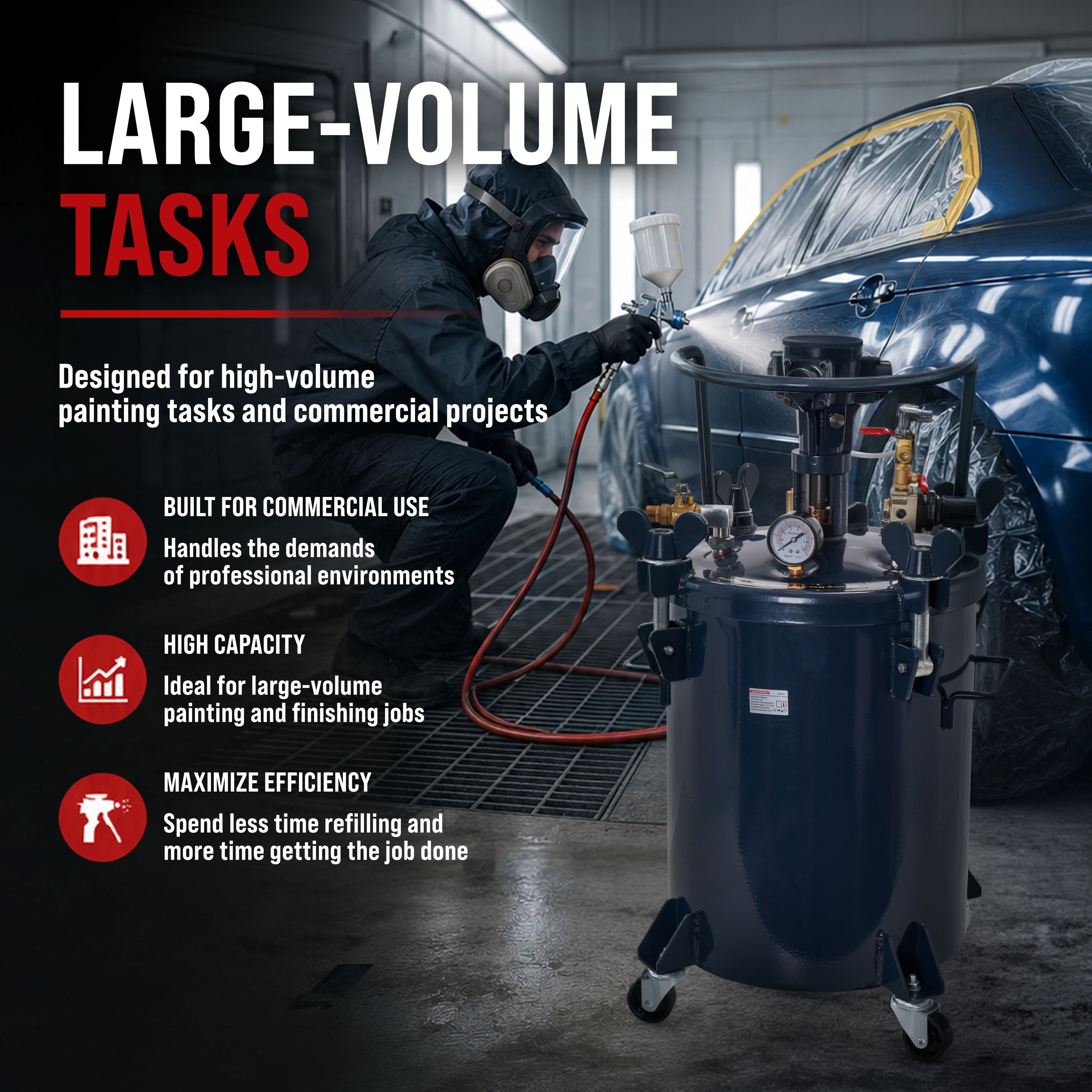

  • Versatile Application: Ideal for large volume painting tasks, making it perfect for commercial painting projects or any situation requiring a large amount of spraying.

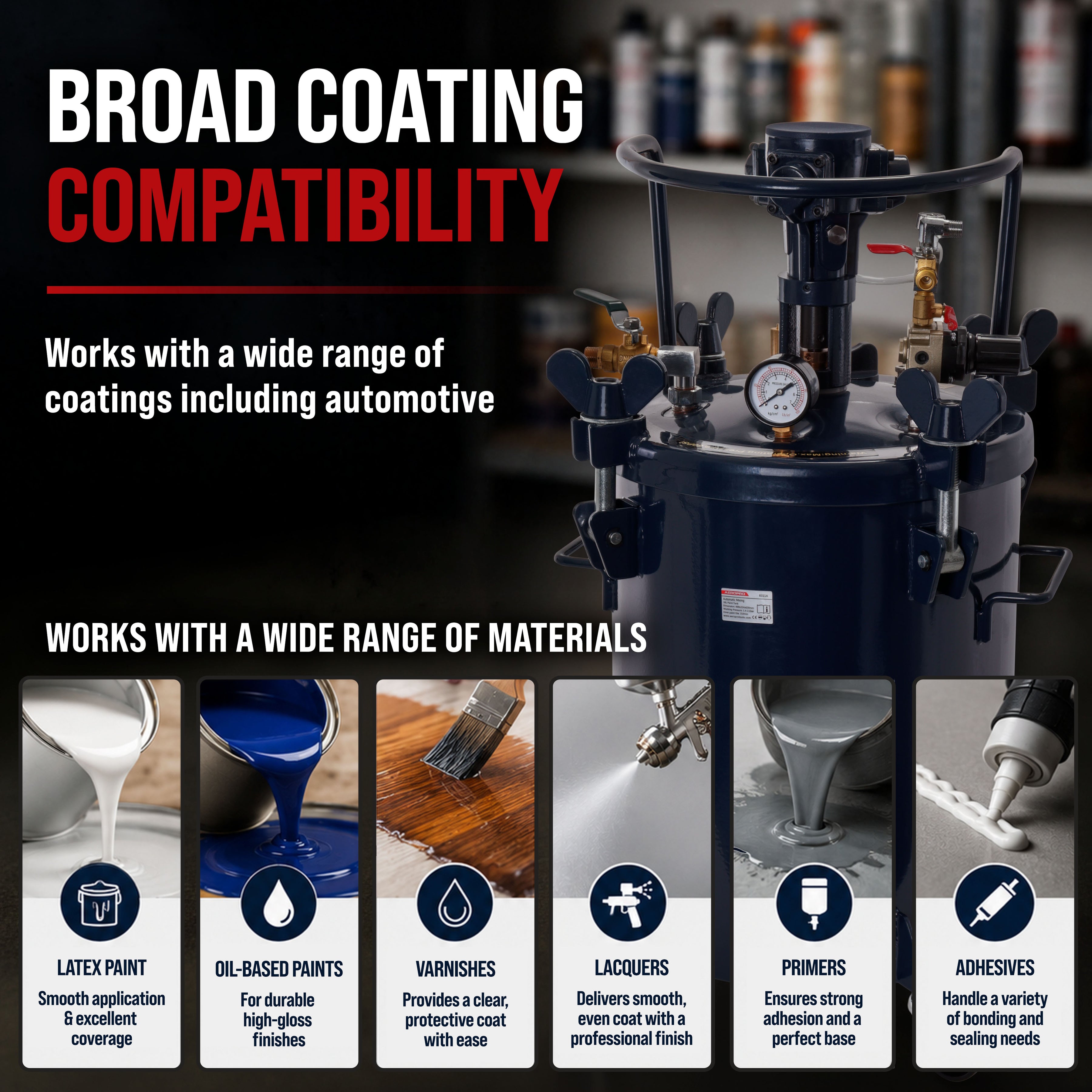

  • Wide Compatibility: Suitable for a diverse range of coatings including automotive, oil-based, latex, varnishes, lacquers, primers, wood coatings, adhesives, and more, offering versatility in usage. 12.3" Inside Diameter/15" Inside Depth.
Click to read more
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information, go to

Weight: 67.0 lb


Commercial 8 Gallon (30 Liters) Spray Paint Pressure Pot Tank with Air Powered Mixing Agitator

Excellent for Production Painting or Situations where a large amount of spraying is required such as Commercial Trucks, Vans, Buses or for Architectual and Industrial Finishing! The Spray System gives you the benefit of storing a large volume of paint that can be applied rapidly, saving you time and money. Can be used with a broad range of coatings like Automotive, Oil Based, Latex, Varnishes, Primers, and More!

Heavy Duty 8 Gallon Pressure Pot Tank Specifications:
  • Paint pot capacity: 8 Gallons (30 Liters)
  • Powder coated tank finish that is easy to clean
  • Clamp on lid (4 clamps) with an air tight sealing gasket
  • Double output regulation
  • Tank fluid pressure gauge from 0 to 100 psi (0 to 7 bar)
  • Working pressure: Optimal 20-30 psi (1.4 to 2.1 bar); Max operating pressure: 50 psi
  • Air inlet and outlet: 1/4 in.; Fluid outlet: 3/8 in.
  • Air pressure relief valve for safety set at 60 psi (4.0 bar)
  • Air powered mixing agitator with adjustable speed control

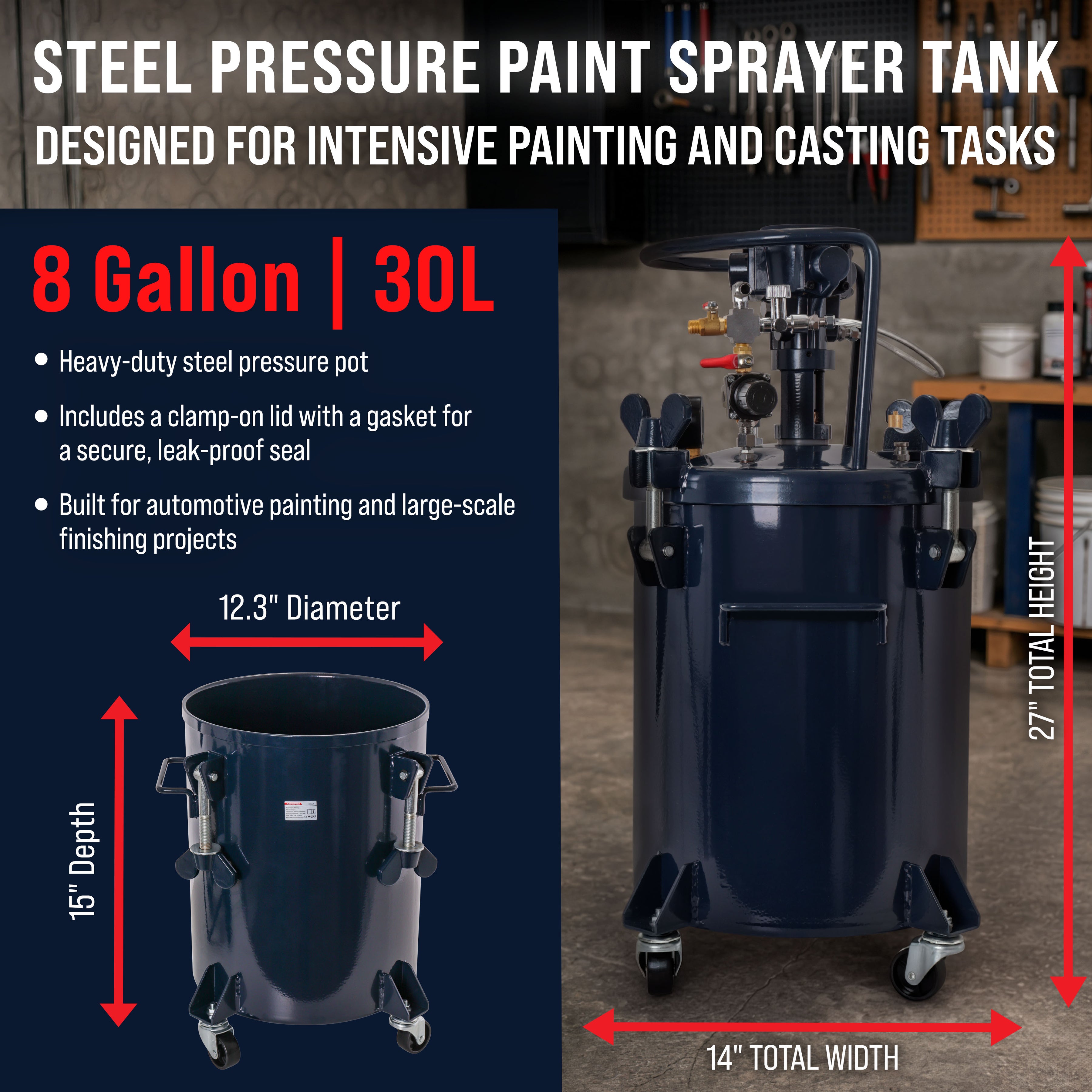

  • Overall dimensions: 27 in. H x 14 in. W x 14 in. D (690 x 350 x 350 mm)
  • Inside diameter: 12.3 in. (312 mm); Inside depth: 15 in. (380 mm)
  • 4 Easy roll casters and a wide base for increased stability (castors removable)

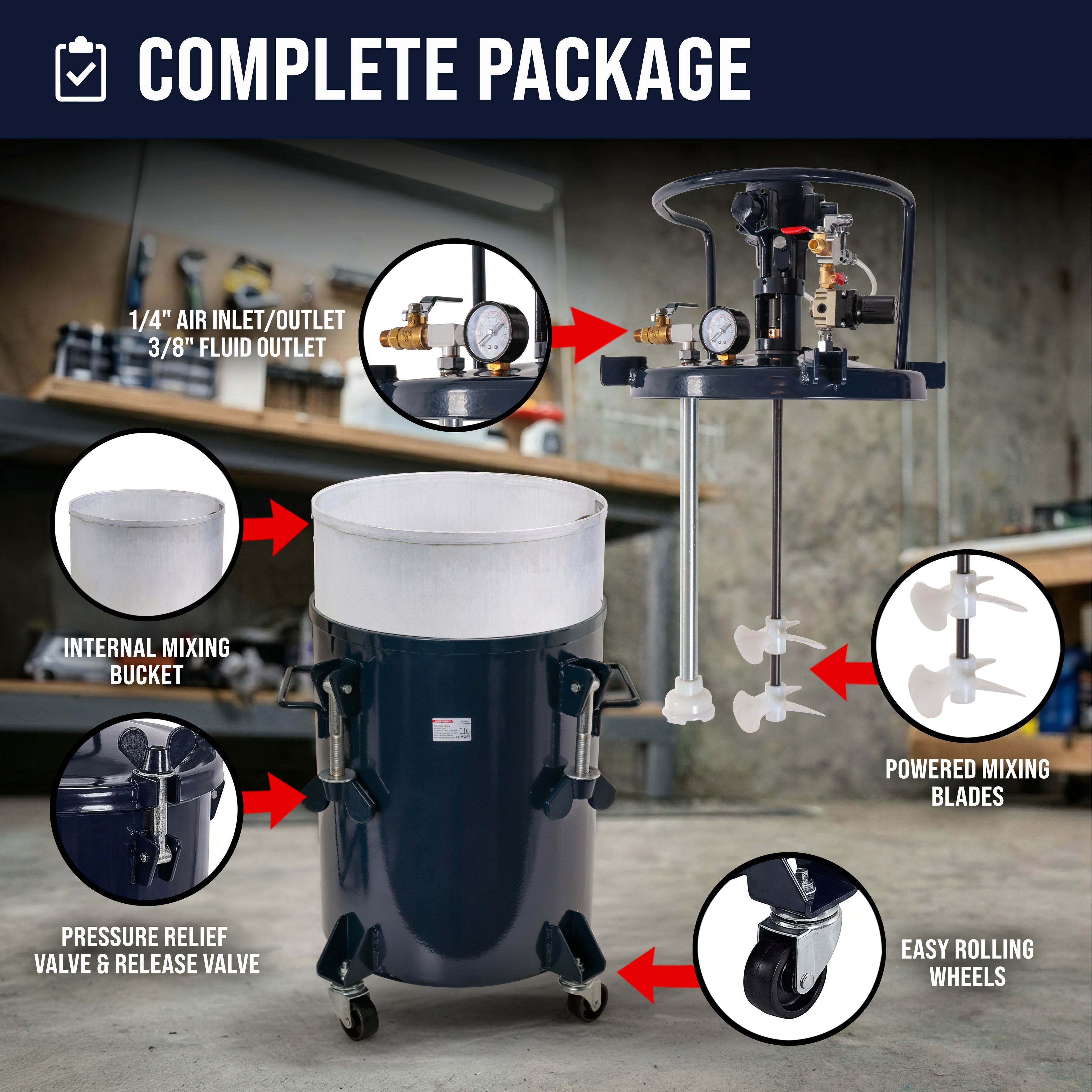

  • Fluid pickup tube has stainless filter screen
  • Shut off ball valves on fluid and air outlets
  • Includes a removable 5 gallon aluminum fluid liner bucket with handles
  • Items that can be used in the pot: 5 gallon tank liners, 1 gallon paint cans, 5 gallon metal or plastic paint buckets, etc...
  • Convenient carrying handles
  • Weight: 67 lbs.
  • Includes instruction manual
  • One year warranty
